DMX Console & ControllerSKU: AI-CONSOLE-AURATT2XIn Production

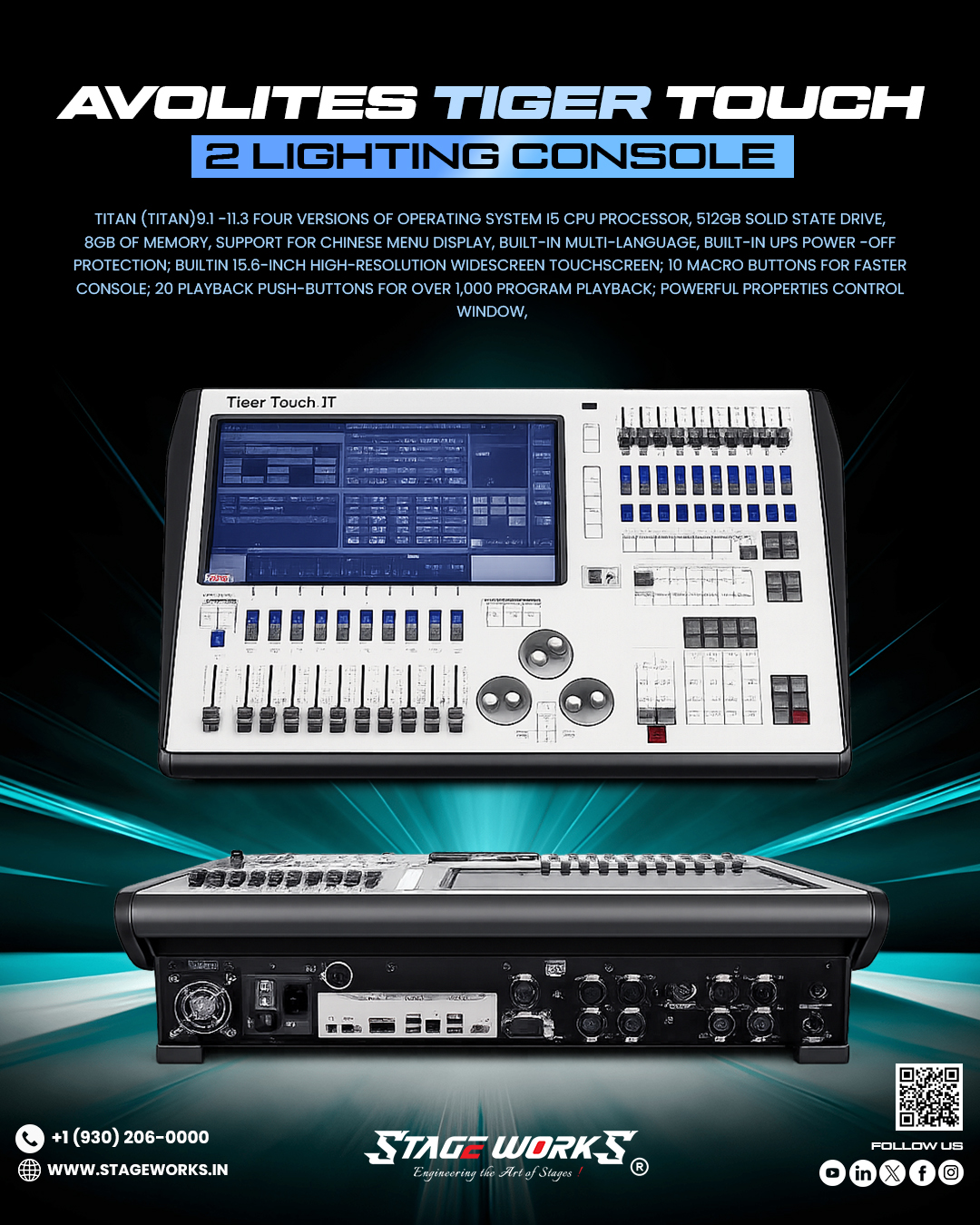

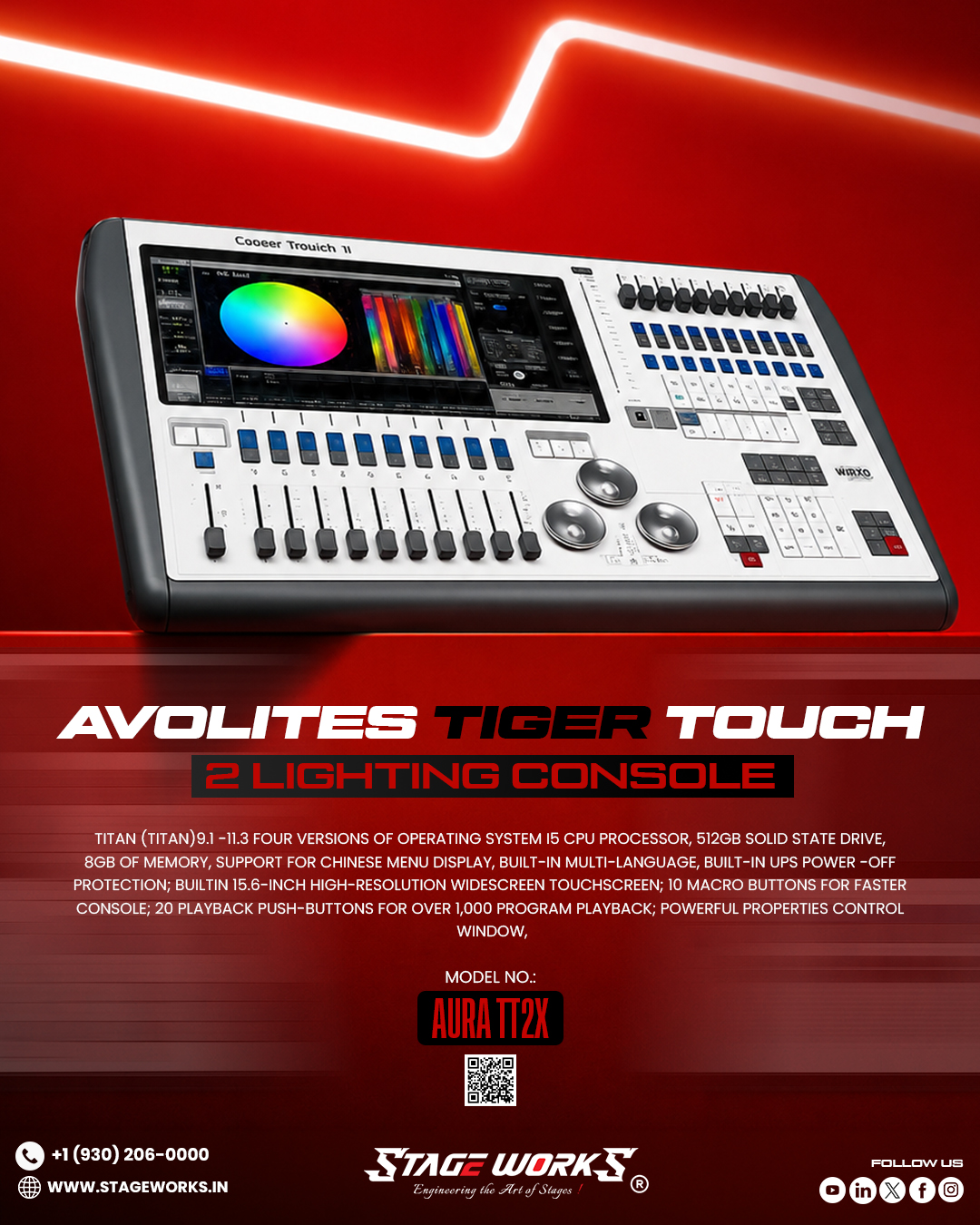

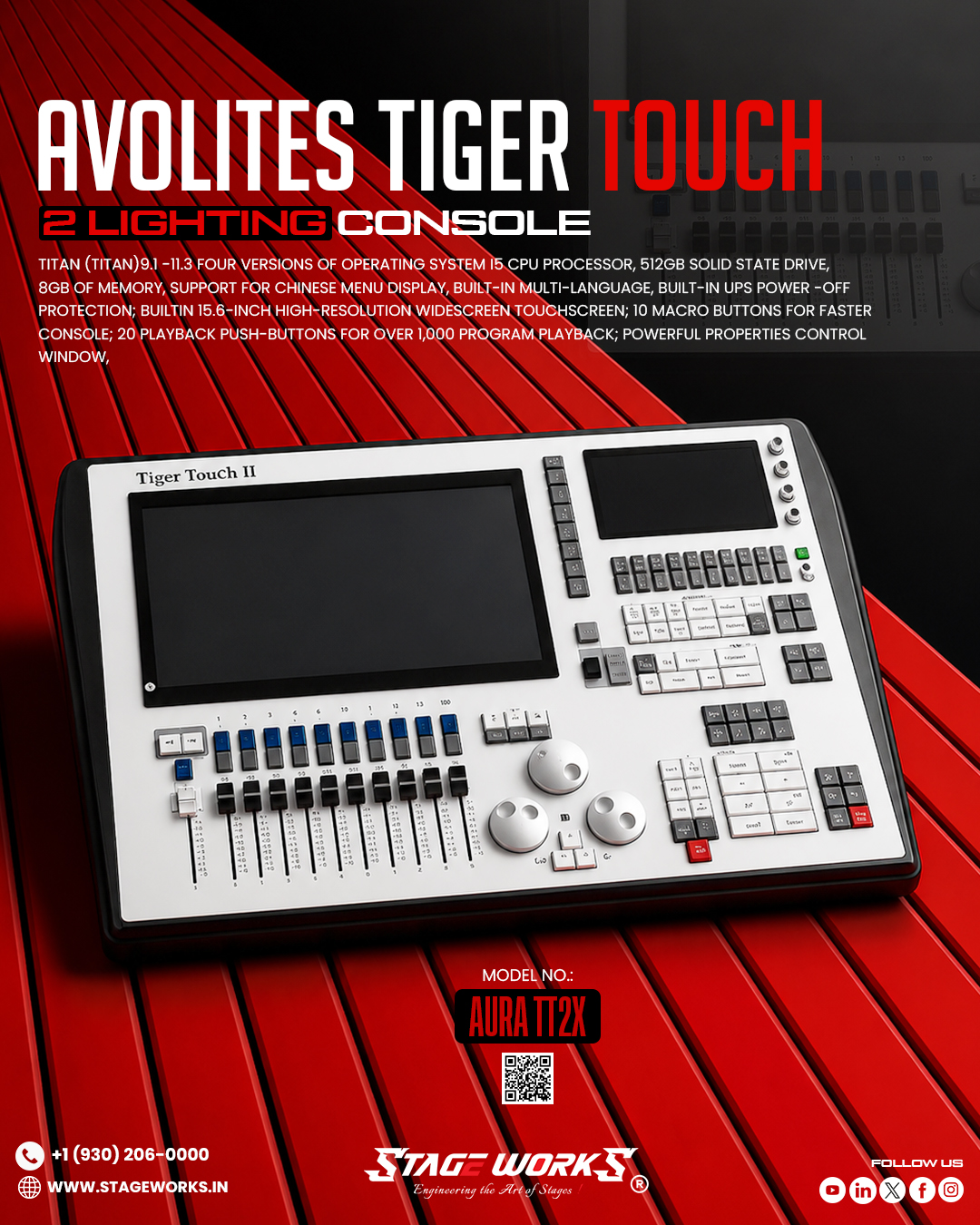

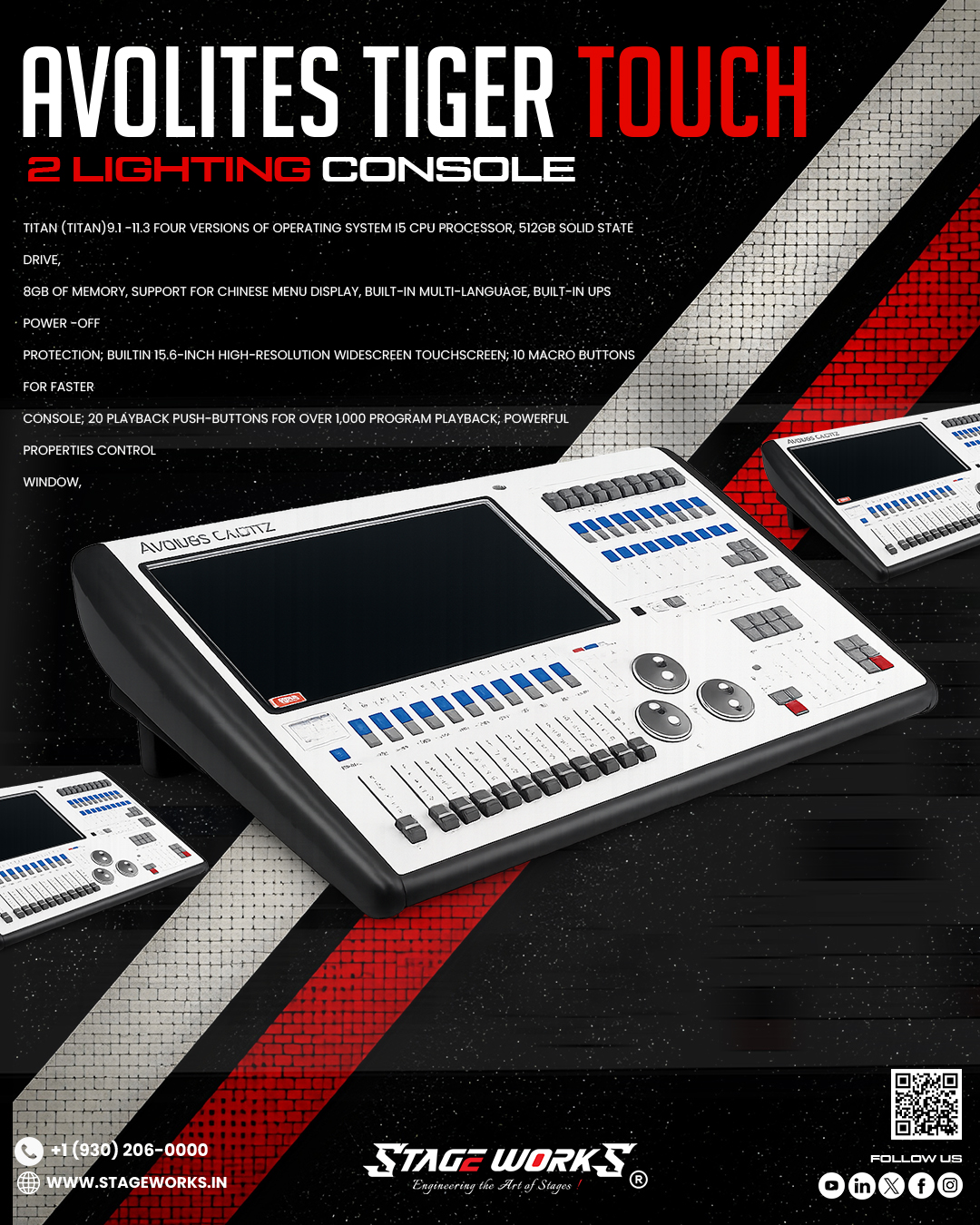

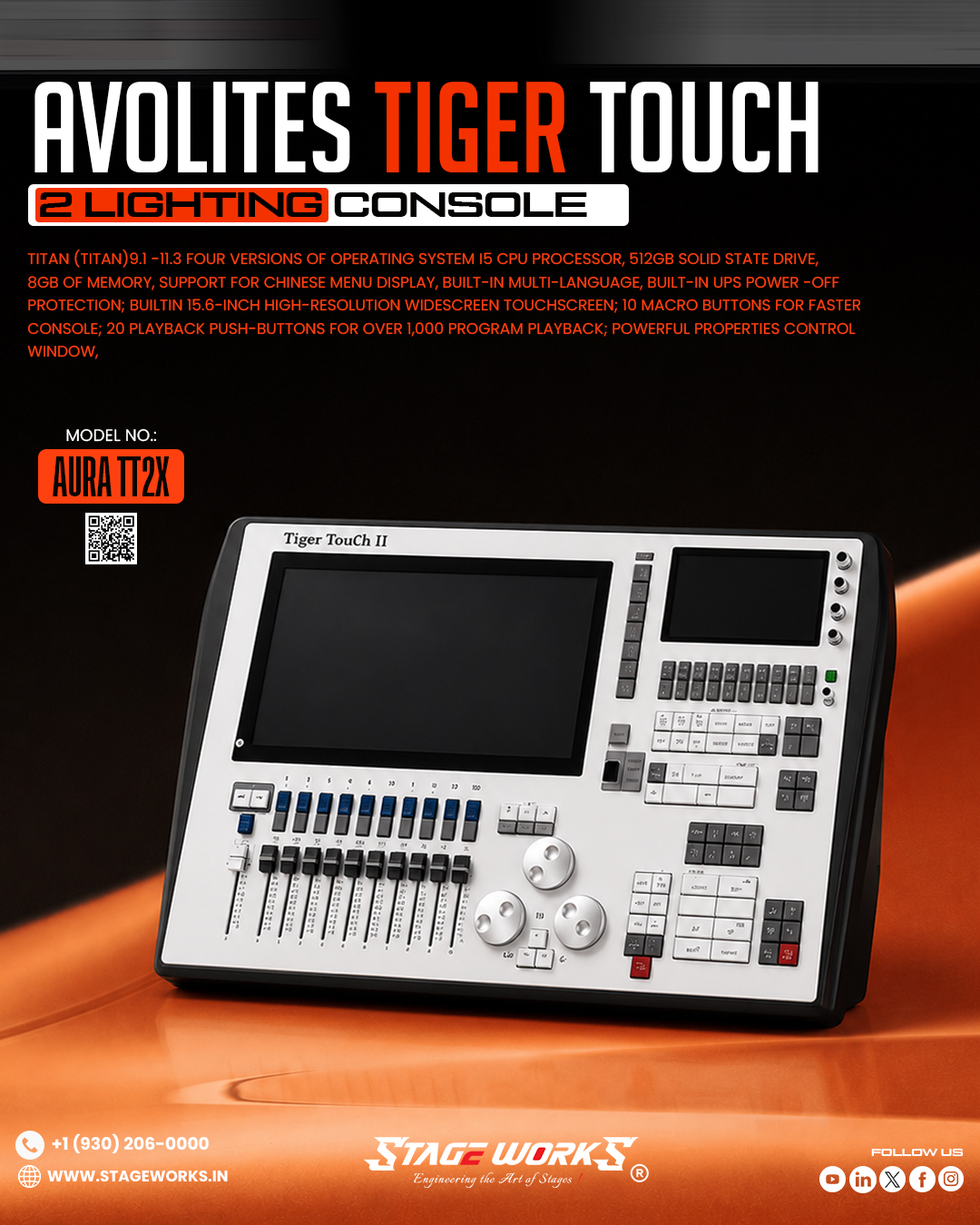

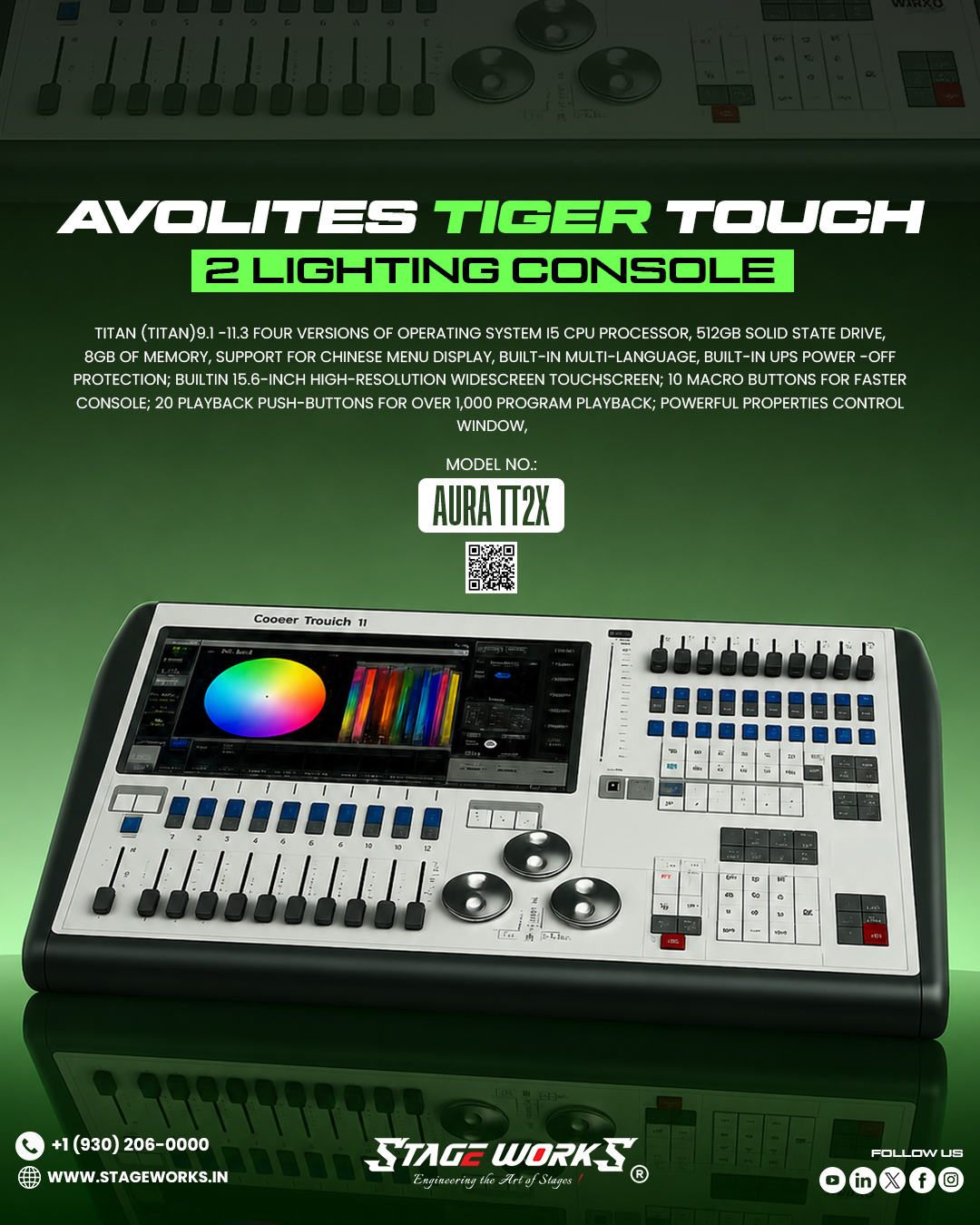

AURA TT2X Professional DMX Lighting Console (Titan OS 15.6" Touchscreen)
Compact touring lighting controller powered by Titan OS with a 15.6" HD widescreen capacitive touchscreen, 12 physical DMX output ports (6,144 channels), 20 playback faders, and built-in Visualiser line visualization.
Key Highlights
Operating SystemTitan (Titan OS) Multi-Version Support
Hardware SpecsIntel Core i5 / 11th Gen Processor, 8GB RAM, 512GB High-Speed SSD
Display Screen15.6" High-Resolution Widescreen Capacitive Touchscreen
Direct DMX Ports12 Physical XLR DMX Outputs (6,144 Channels Direct)
Faders & Playbacks20 Playback Faders (1,000+ Program Cues), 10 Dedicated Macro Buttons
Color Control EngineCMY & RGB Graphical Color Picker System
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Operating System | Titan (Titan OS) Multi-Version Support |
| Hardware Specs | Intel Core i5 / 11th Gen Processor, 8GB RAM, 512GB High-Speed SSD |
| Display Screen | 15.6" High-Resolution Widescreen Capacitive Touchscreen |
| Direct DMX Ports | 12 Physical XLR DMX Outputs (6,144 Channels Direct) |
| Faders & Playbacks | 20 Playback Faders (1,000+ Program Cues), 10 Dedicated Macro Buttons |
| Color Control Engine | CMY & RGB Graphical Color Picker System |
| Built-In 3D Visualization | Integrated Real-Time Visualiser Stage Lighting Simulation |
| Network Protocols | Art-Net, sACN, CITP (Media Server Video Thumbnail Previews) |
| Timecode & Audio Sync | MIDI Timecode Acousto-Optic Sync, Internal Audio Player Triggering |
| Wireless Control | Wi-Fi Remote Lighting Control for iOS (iPhone/iPad) & Android |
| Power Backup | Built-In Automatic UPS Power-Off Protection |
| Packaging | Heavy-Duty Road Aviation Flight Case |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
