Auditorium Stage Lighting Systems & Turnkey Integration
Stage lighting is not simply a collection of fixtures mounted above a stage. A properly designed auditorium lighting system is an integrated combination of optical engineering, DMX/RDM communication, power distribution, hanging infrastructure, scene programming, and operational training.
Zero Blind Spots, Perfect Throw Angles & Balanced Lux
We map every light cone in 3D simulation software before on-site installation, guaranteeing perfect face modeling and dark proscenium borders.
The 6 Primary Auditorium Lighting Positions
Every professional auditorium system relies on engineered lighting zones to achieve 3-dimensional performer visibility, vibrant set color, and theatrical emotion.

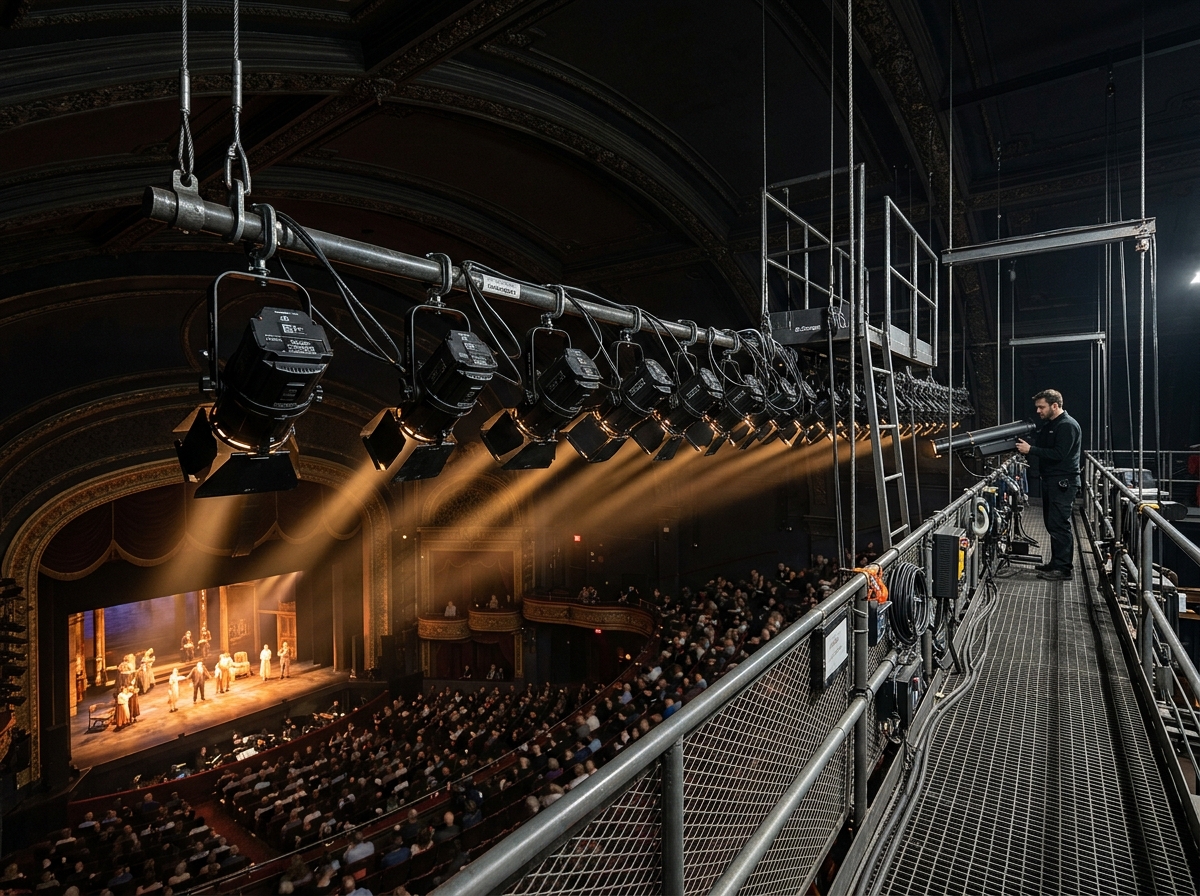

Front of House (FOH) Catwalk
Primary Keylight & Face Illumination for Performers
Positioned in the auditorium ceiling catwalk at a 40°–45° angle to the stage lip. High-CRI profile spots and followspots provide key facial modeling, ensuring VIP speakers and actors are brightly lit without dark eye sockets or spill into the audience.

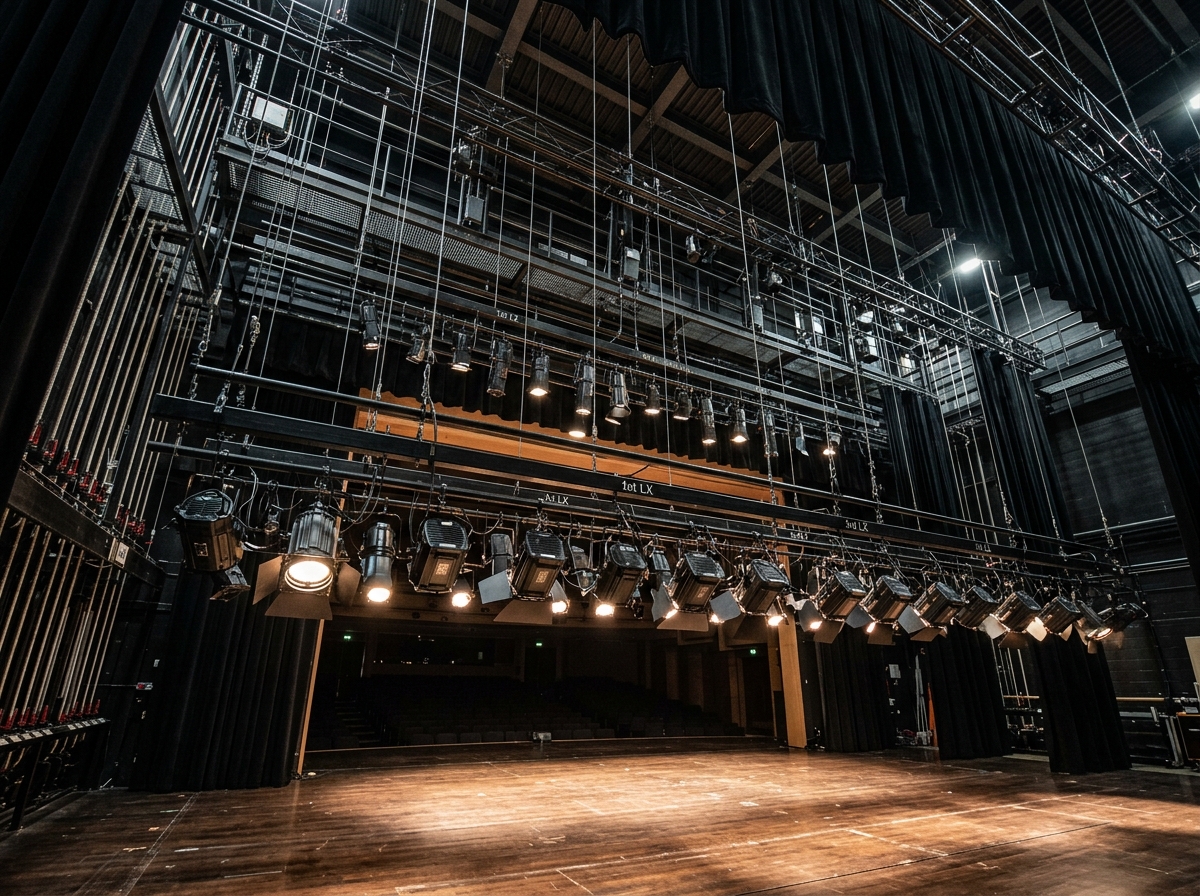

Overhead Stage Battens
Motorised & Fixed Top Down-Lighting & Color Fill
Suspended across 3 to 6 numbered motorized or fixed pipe battens above the acting area. Motorized COB Fresnels and high-power LED pars provide soft-edged down-wash and rich ambient color fills across the entire stage floor.

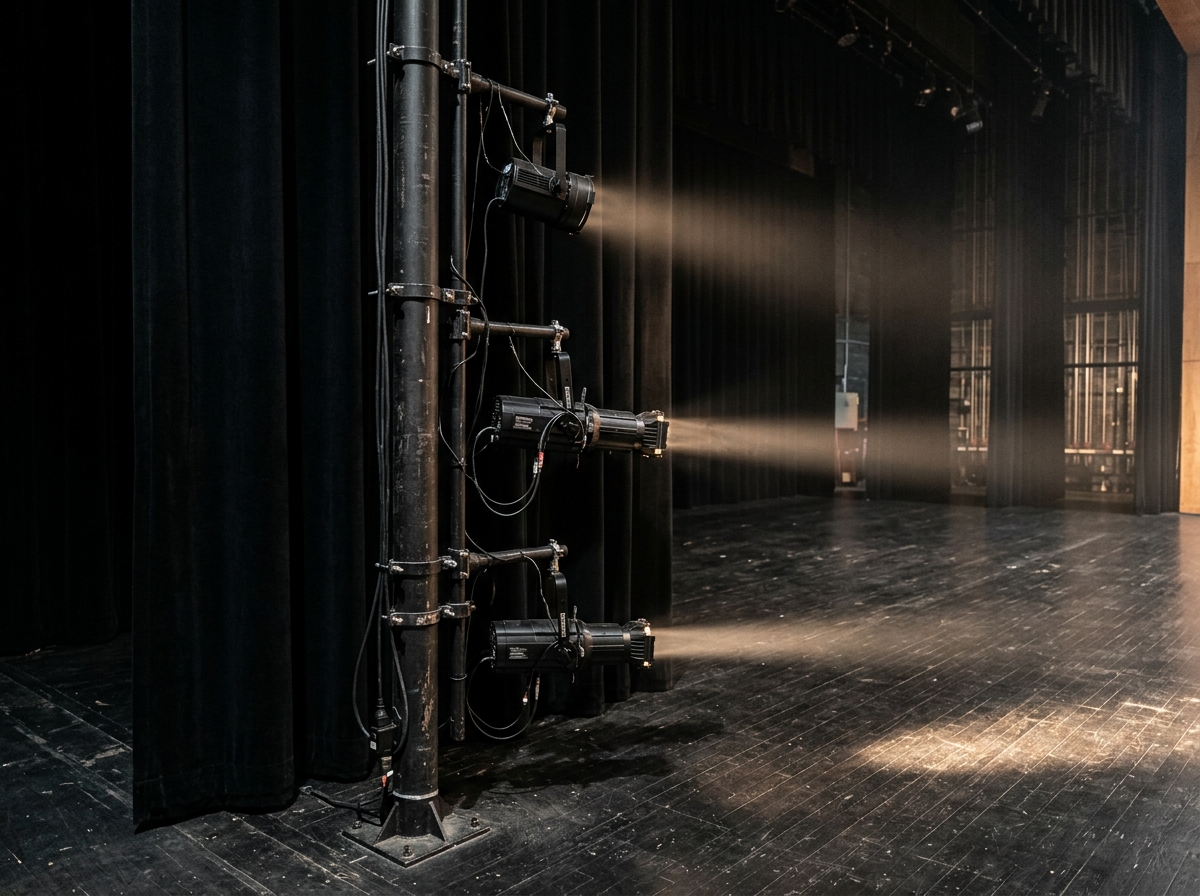

Side Booms & Ladders (Torms)
Dance, Drama & 3-Dimensional Performer Modeling
Vertical pipe booms concealed in the stage wings. Horizontal cross-lighting (shin, mid, and head height) models performer silhouettes, highlights intricate dance footwork, and visually separates actors from dark backdrops.

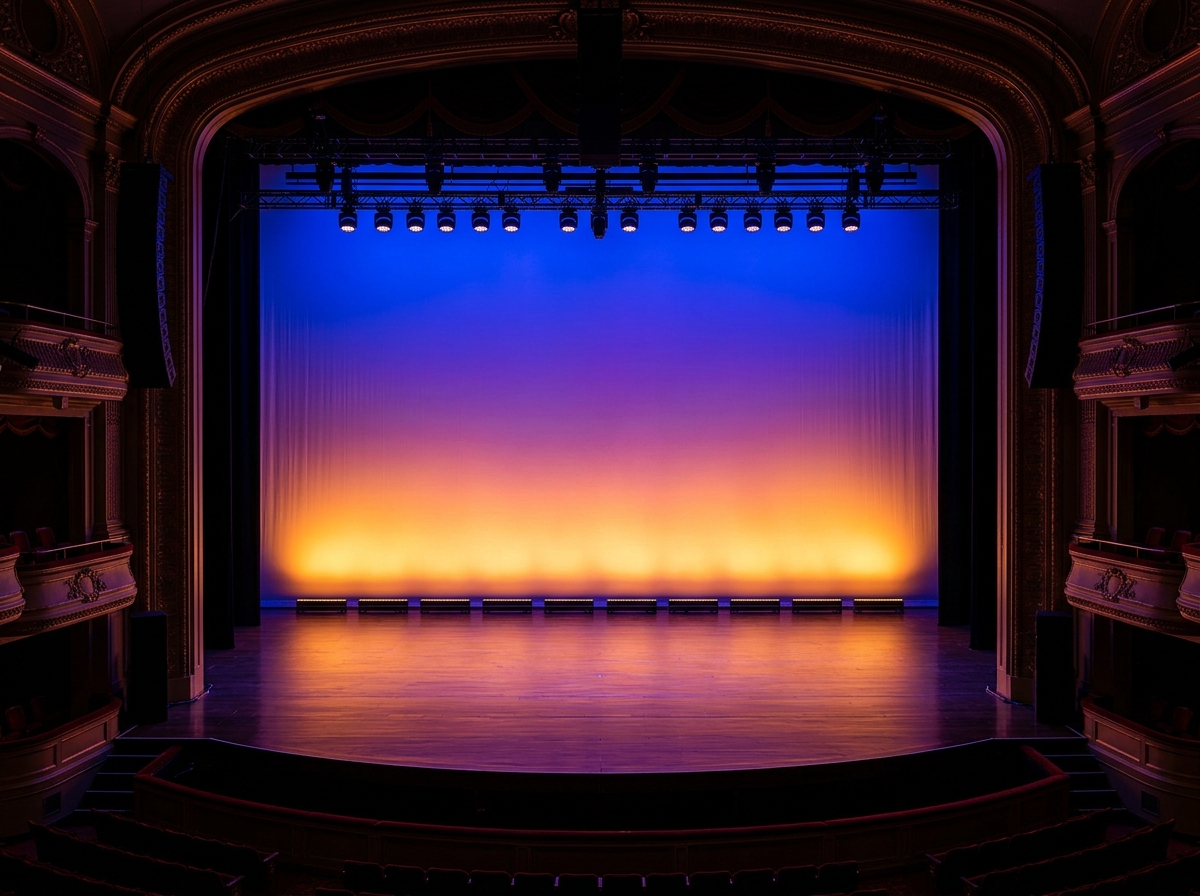

Cyclorama & Backdrop Lighting
Horizon Sky Effects & Dynamic Stage Color Backdrops
Asymmetric floodlights mounted on the rearmost overhead batten paired with floor-mounted ground rows. Produces seamless, smooth color washes simulating dawn, dusk, sky horizons, and dramatic color transitions on the cyclorama.

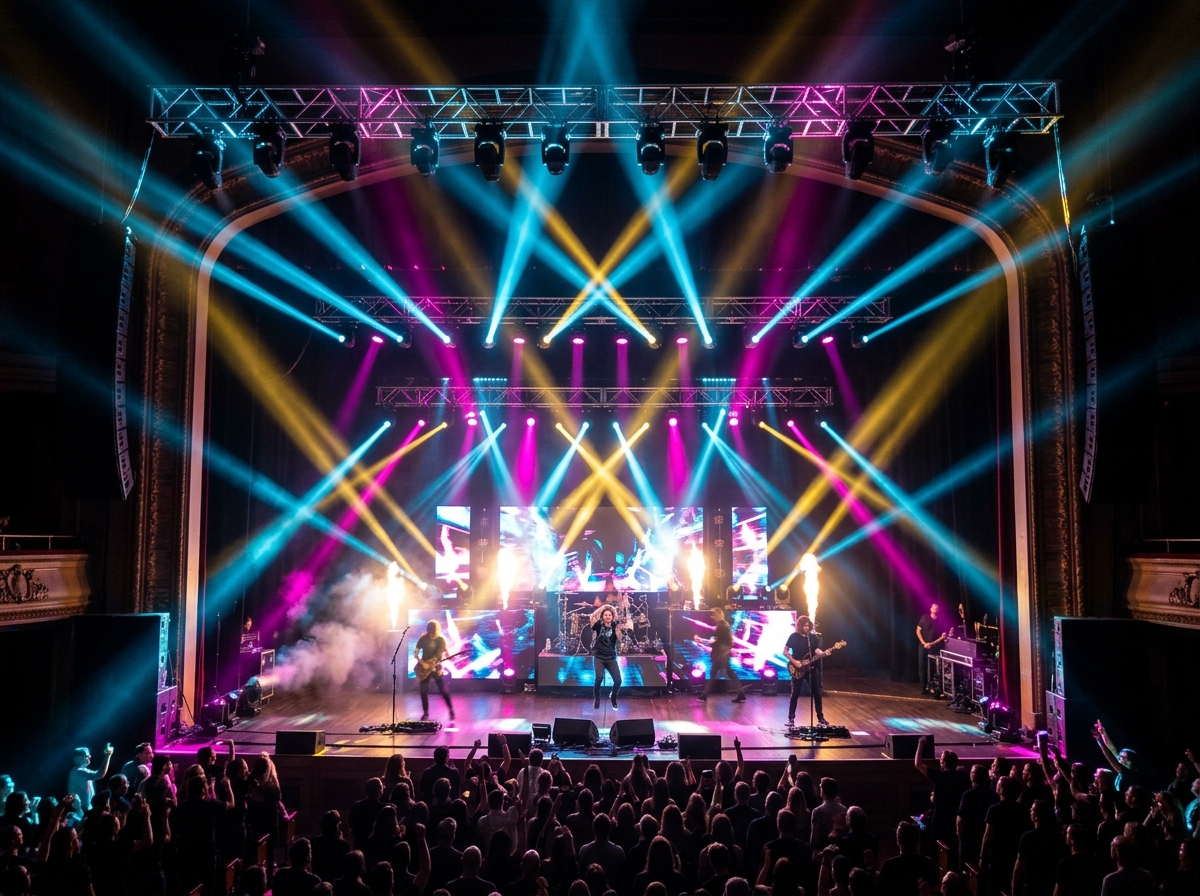

Intelligent Moving Heads & FX
Live Concerts, Convocations & High-Impact Shows
Rapid 360° pan/tilt Sharpy beam luminaires, prism splitters, and audience blinders mounted on mid-stage and back-stage trusses for live music concerts, youth festivals, convocations, and dynamic theatrical impact.

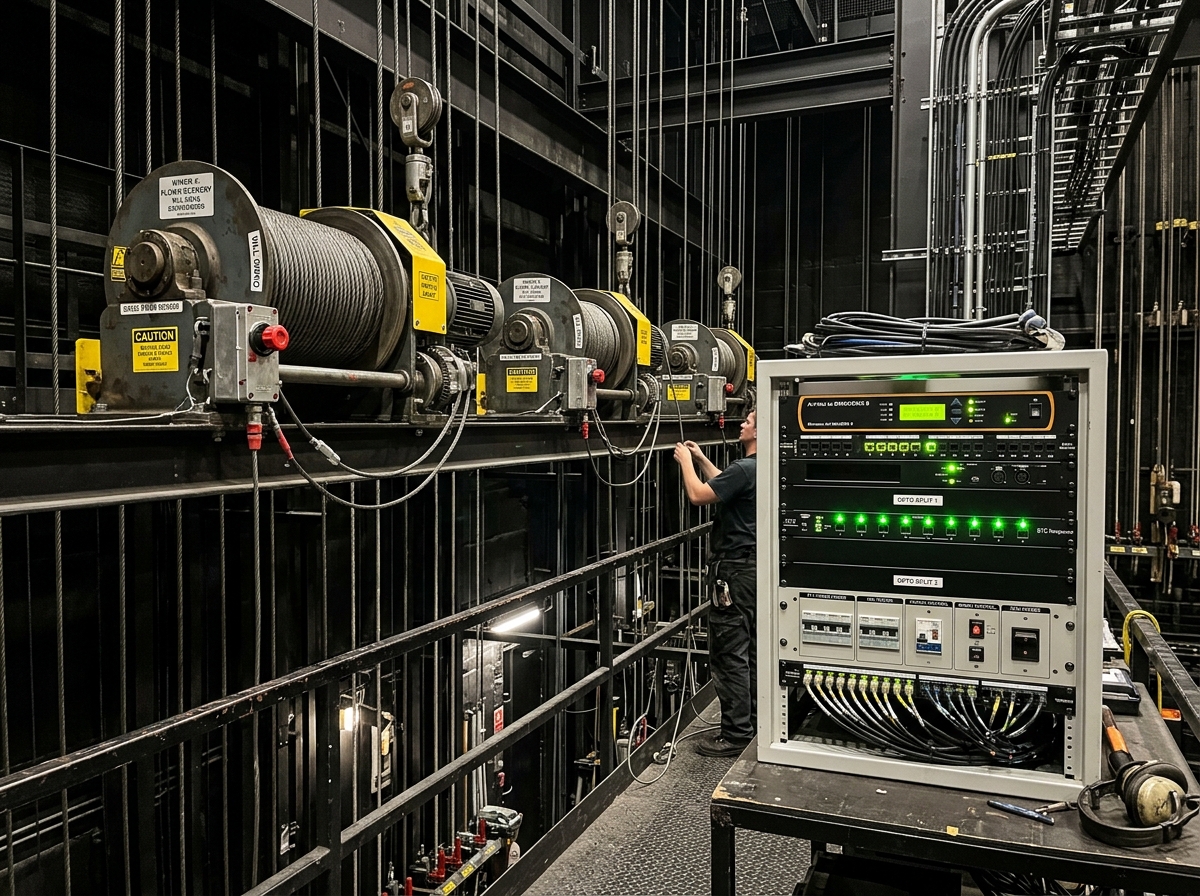

Rigging & DMX Distribution
Motorised Winch Hoists & Opto-Isolated Signals
Certified structural rigging, motorized winch hoist systems with safety limit switches, internal cable baskets, optical DMX/RDM splitters, and sequenced power distribution panels for complete operational reliability.
Turnkey Stage Lighting Packages
Pre-engineered luminaire schedules designed for distinct institutional applications, seating scales, and technical operator requirements.
School & College Auditoriums
Versatile Convocations, Annual Functions & Seminars
Included Engineering Specifications:
- ✓Motorized COB Fresnels (200W) for uniform warm/cool face wash
- ✓FOH Framing Profile Spots (15°-30° zoom) for lectern keylight
- ✓High-Power LED Par 54 for vibrant back/top color fills
- ✓Push-button touchscreen preset console with lockable architectural wall plates
- ✓Motorized winch bars for safe ground-level maintenance
Theatres & Performing Arts Centers
Classical Drama, Dance, Operas & Orchestral Shows
Included Engineering Specifications:
- ✓High-CRI (≥96) whisper-quiet convection Fresnels & Profile LEKOs
- ✓Multi-angle side lighting torms (Shin, Mid, Head height) for dance modeling
- ✓Asymmetric RGBW Cyclorama floods for horizon gradient sky effects
- ✓DMX512 / RDM dual-universe lighting console with motorized faders
- ✓Long-throw electronic followspots (400W–800W) with stand & iris
Multipurpose Cultural & Convention Arenas
Live Concerts, Award Ceremonies & Mega Events
Included Engineering Specifications:
- ✓High-speed 380W / 440W Sharpy beam moving heads with prism & frost
- ✓4-Eye & 7-Eye warm amber COB audience blinders
- ✓Heavy-duty aluminium FOH triangle trussing with dual hoist chain motors
- ✓Opto-isolated DMX splitters & Art-Net ethernet signal distribution
- ✓Atmospheric DMX haze generators & heavy low-fog systems
Ready to Formulate Your Auditorium Stage Lighting BOQ?
Connect directly with our senior lighting design engineers. We review your architectural drawings, calculate precise Lux levels, and provide complete itemized specifications with Pan-India installation support.
