DMX Console & ControllerSKU: AI-CONSOLE-ARENAIn Production

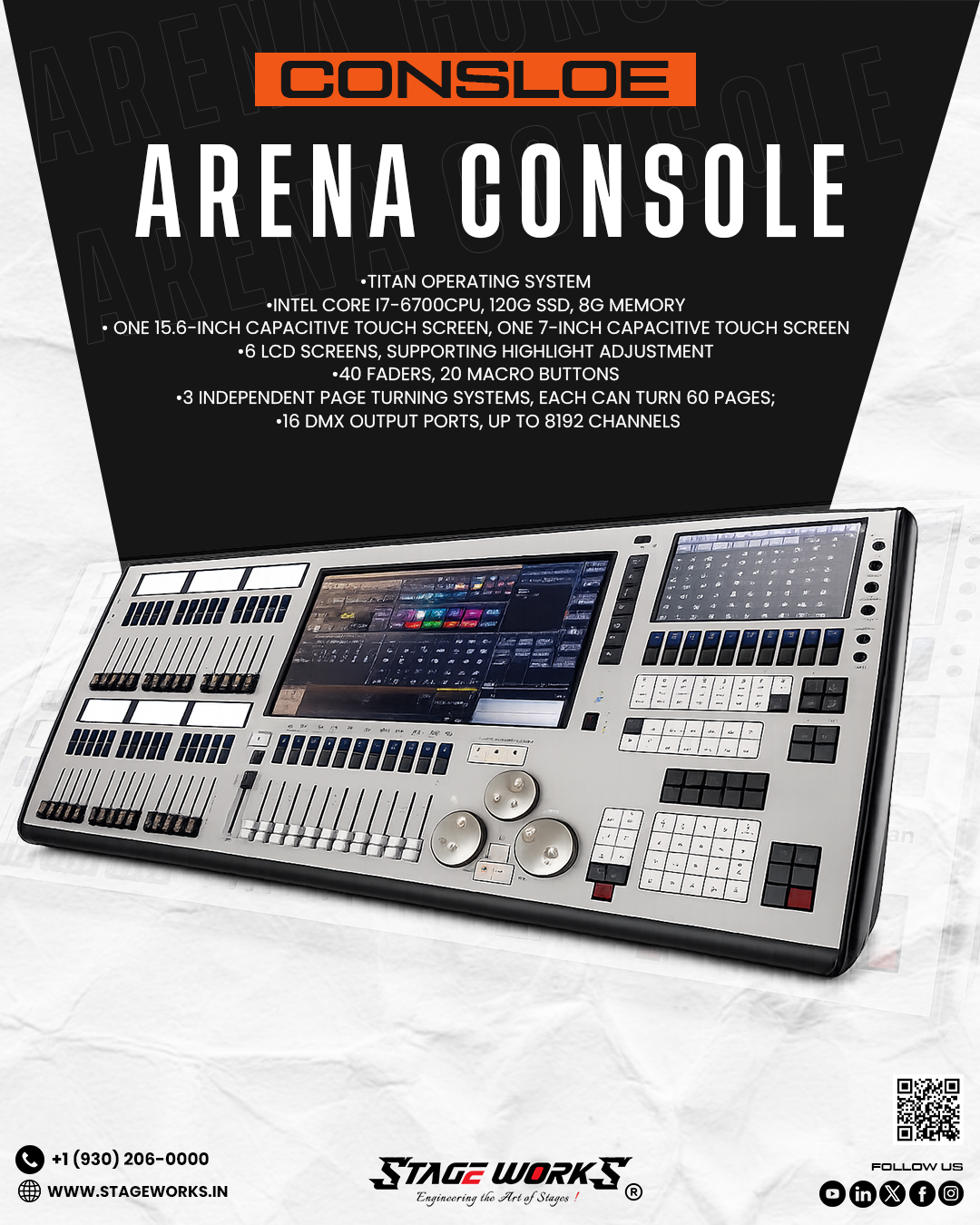

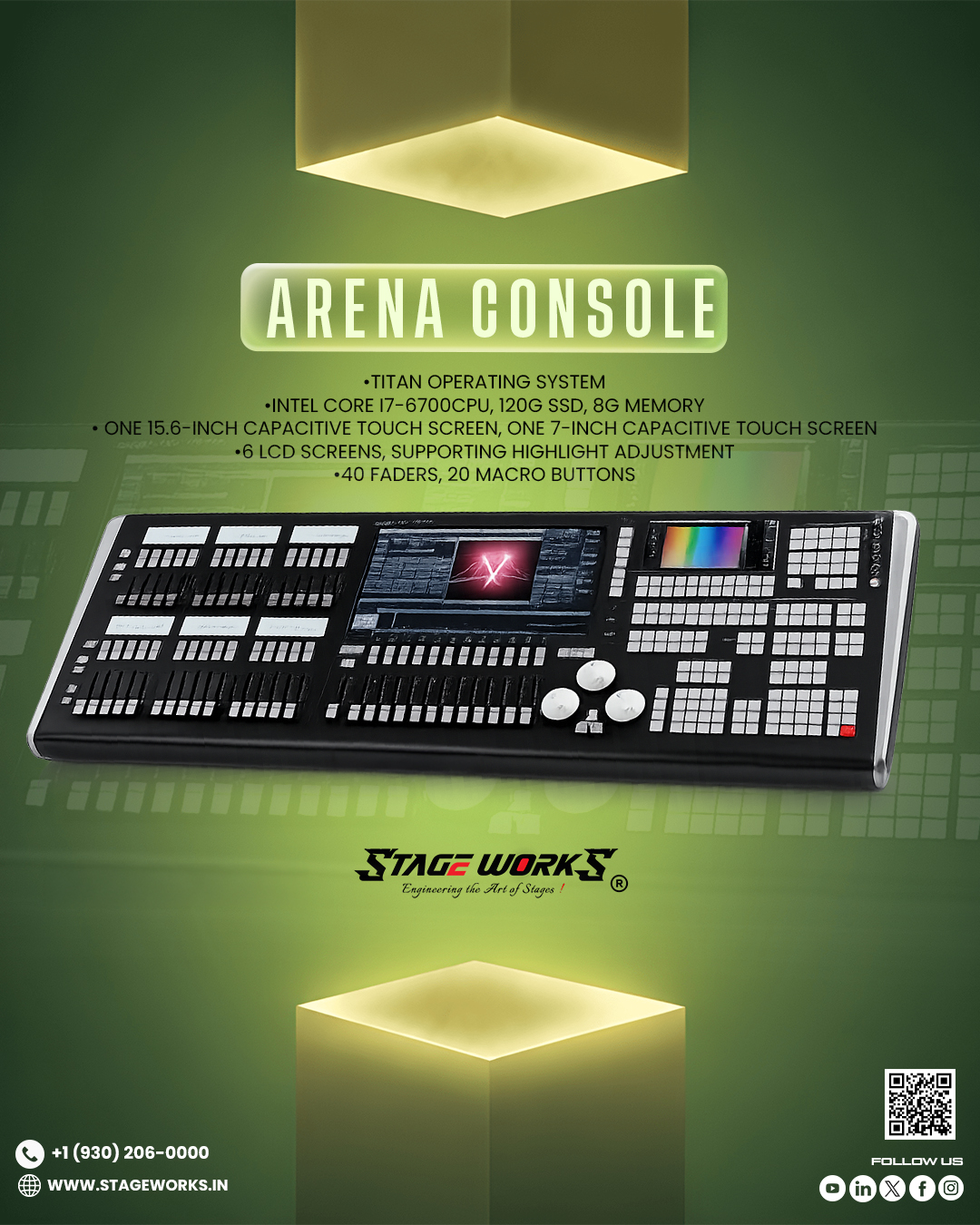

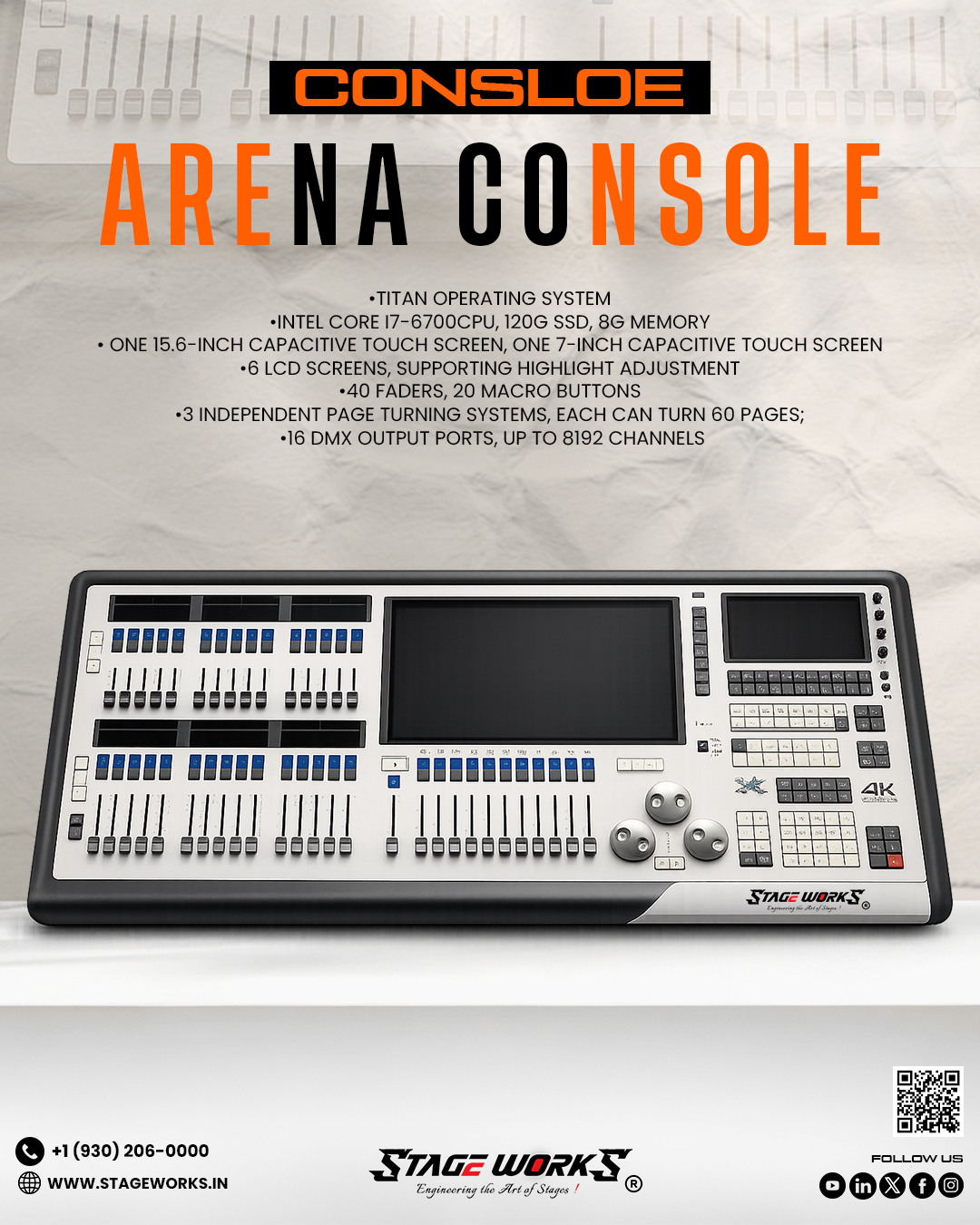

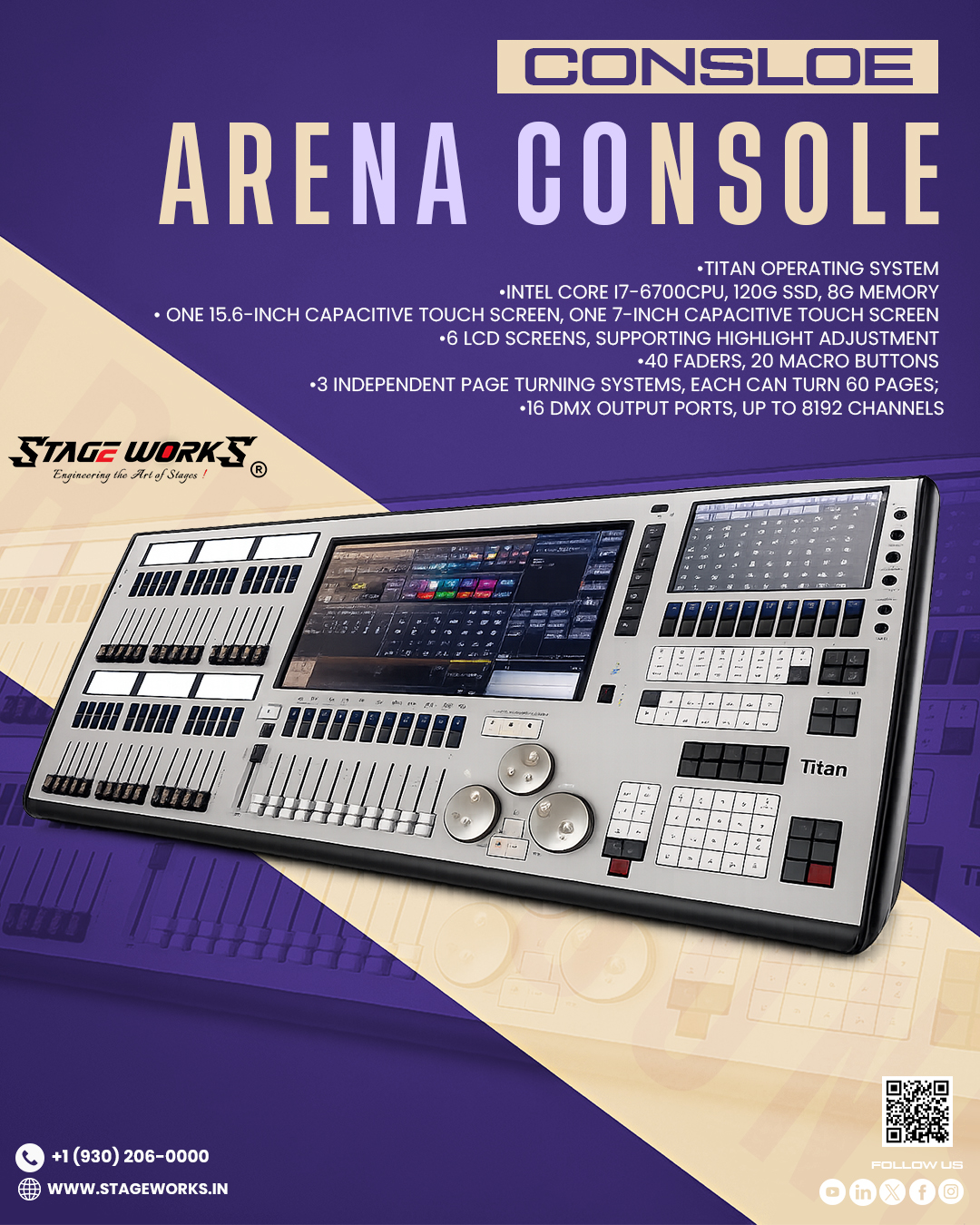

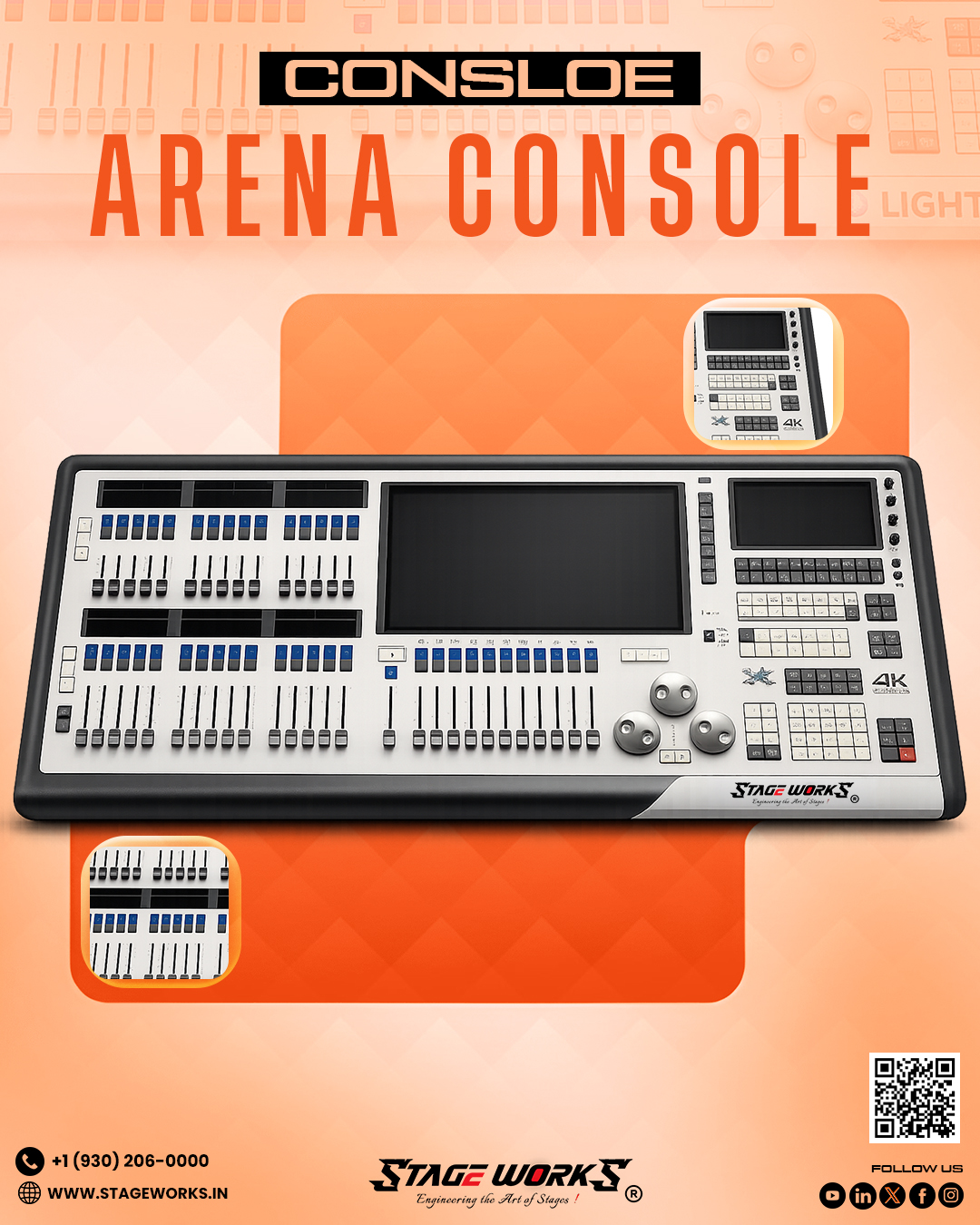

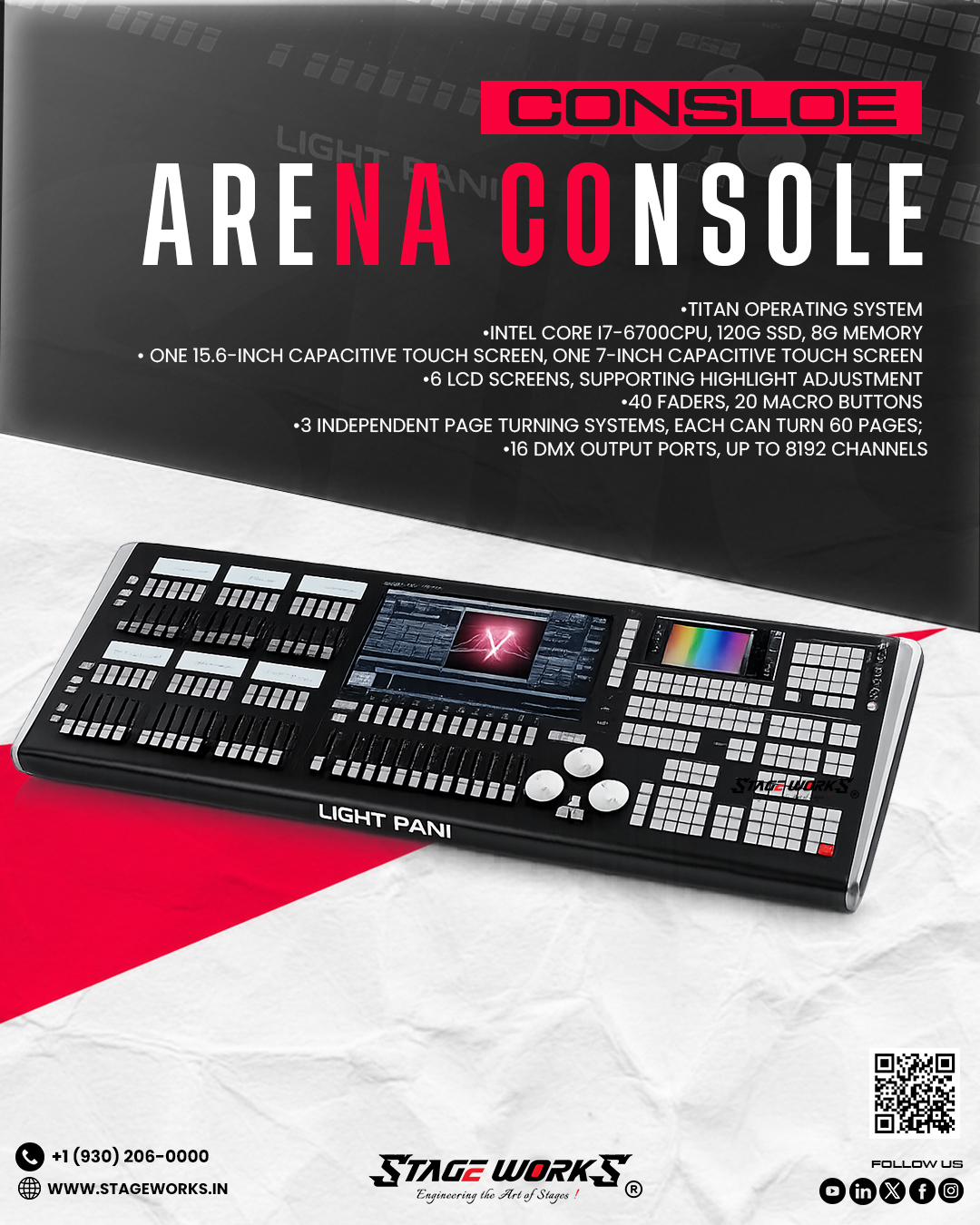

Arena DMX Lighting Console (Titan OS Dual Touchscreen 16-DMX)
Flagship Titan OS lighting console equipped with 15.6" primary and 7" secondary touchscreens, Intel Core i7 processor, 40 motorized faders, 16 physical DMX universes (expandable to 64), and internal UPS.
Key Highlights
Operating SystemTitan (Titan OS) Lighting Engine
Processor & MemoryIntel Core i7-6700 CPU, 8GB High-Speed RAM, 120GB SSD
Displays15.6" Main Capacitive Touchscreen + 7" Auxiliary Touchscreen + 6 LCD Scribble Strips
Faders & Playbacks40 Playback Faders, 20 Macro Buttons, 3 Banks of 60 Pages
Direct Physical DMX Outputs16 XLR Ports (8,192 Channels), Expandable to 64 Universes via Titan-Net
Optical Encoders3 Metal Shaft Attribute Encoders + 4 Playback Encoders with Push-Button
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Operating System | Titan (Titan OS) Lighting Engine |
| Processor & Memory | Intel Core i7-6700 CPU, 8GB High-Speed RAM, 120GB SSD |
| Displays | 15.6" Main Capacitive Touchscreen + 7" Auxiliary Touchscreen + 6 LCD Scribble Strips |
| Faders & Playbacks | 40 Playback Faders, 20 Macro Buttons, 3 Banks of 60 Pages |
| Direct Physical DMX Outputs | 16 XLR Ports (8,192 Channels), Expandable to 64 Universes via Titan-Net |
| Optical Encoders | 3 Metal Shaft Attribute Encoders + 4 Playback Encoders with Push-Button |
| Network & Fiber Ports | 4 x Built-In Gigabit RJ45 Ports + 2 x Gigabit Optical Fiber Ports |
| Timecode Synchronization | LTC Timecode Port, MIDI In/Thru, SMPTE Timecode Support |
| Power Backup | Built-in High-Power Internal UPS Battery |
| Remote Control | Wireless iOS & Android App Support via Wi-Fi Router |
| Chassis & Packaging | Touring Flight Case Included (1140 x 300 x 540 mm) |
| Console Weight | 40 kg (With Flight Case: Approx. 65 kg) |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
