Profile SpotlightSKU: AI-PERFORMER-FS300MZIn Production

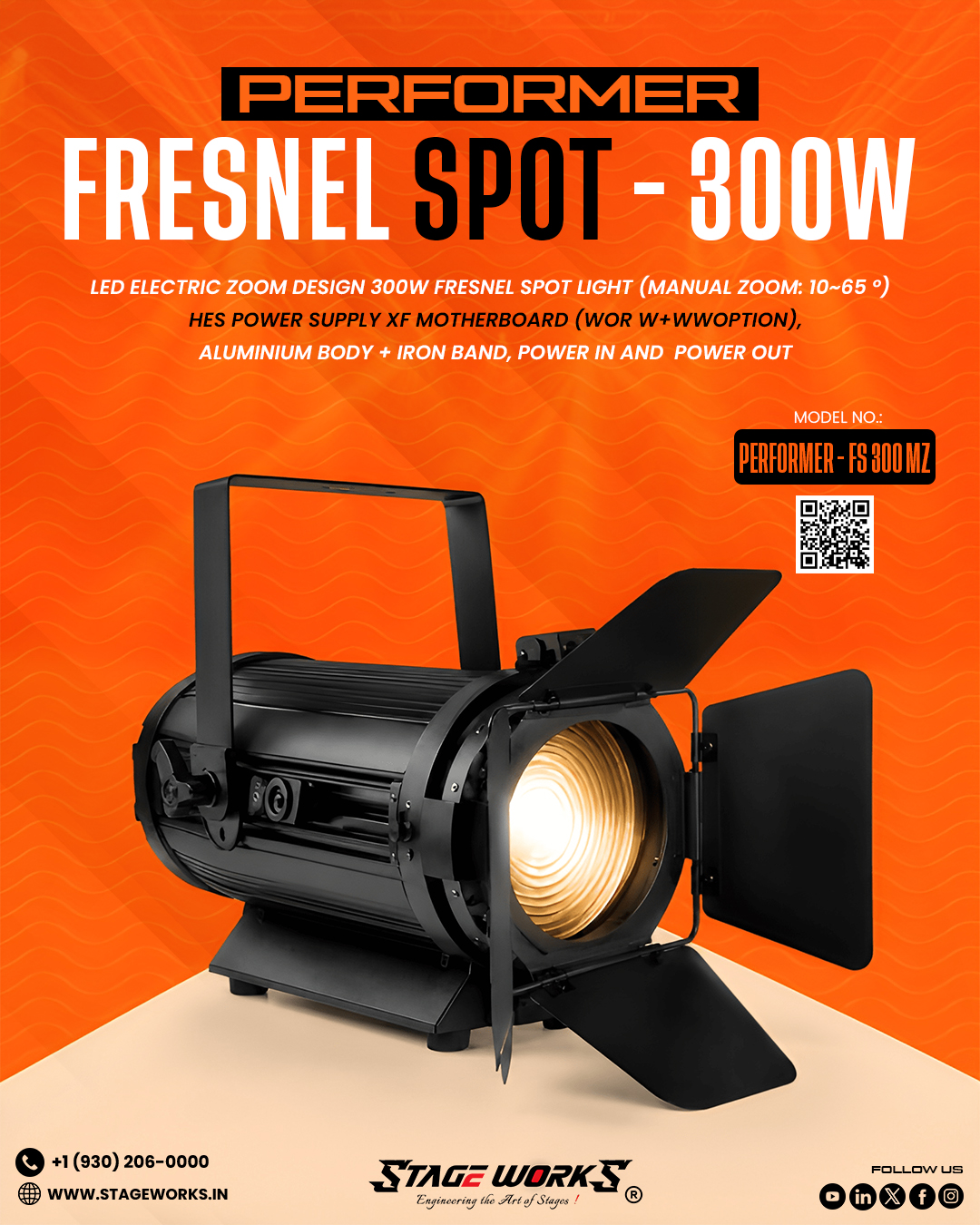

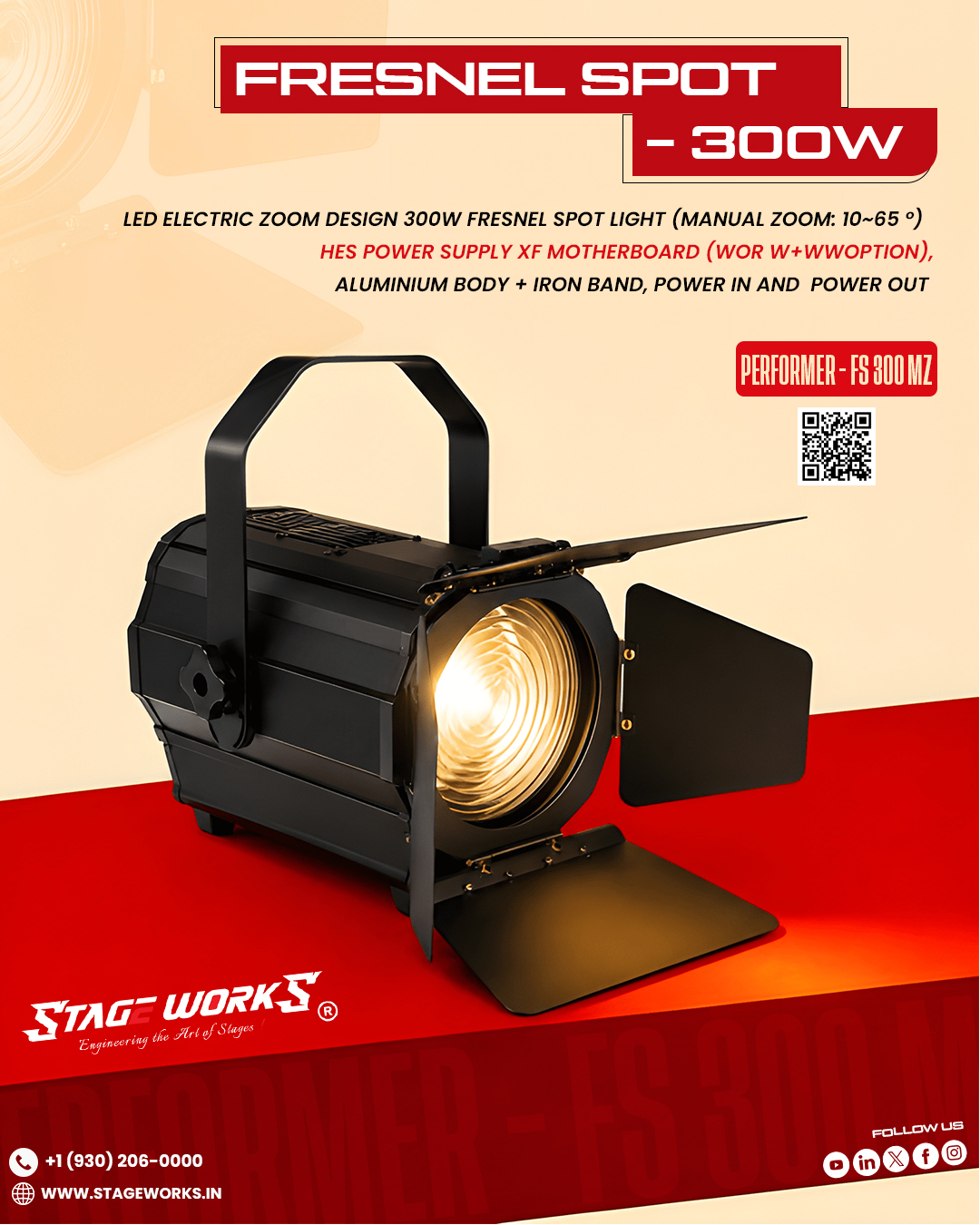

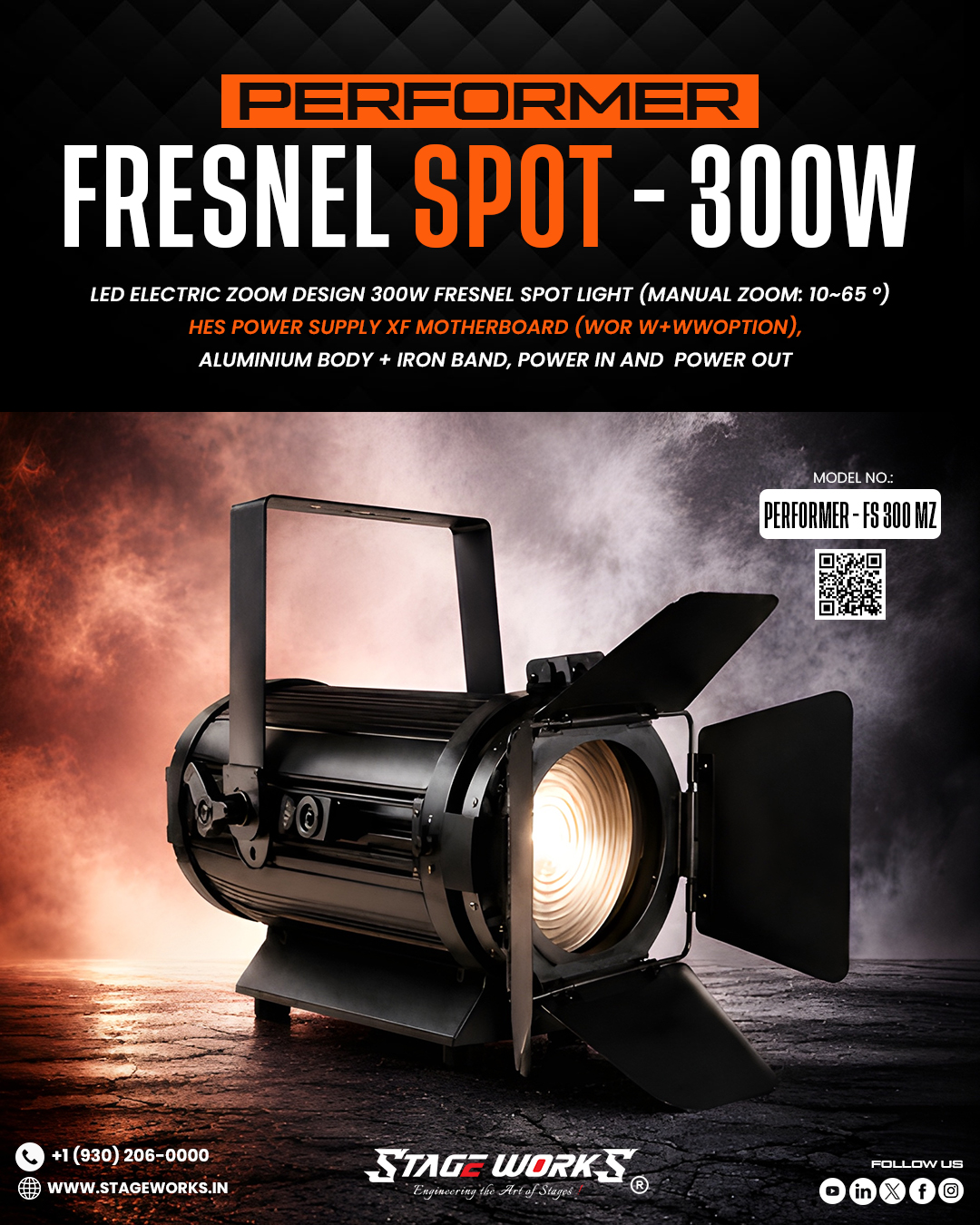

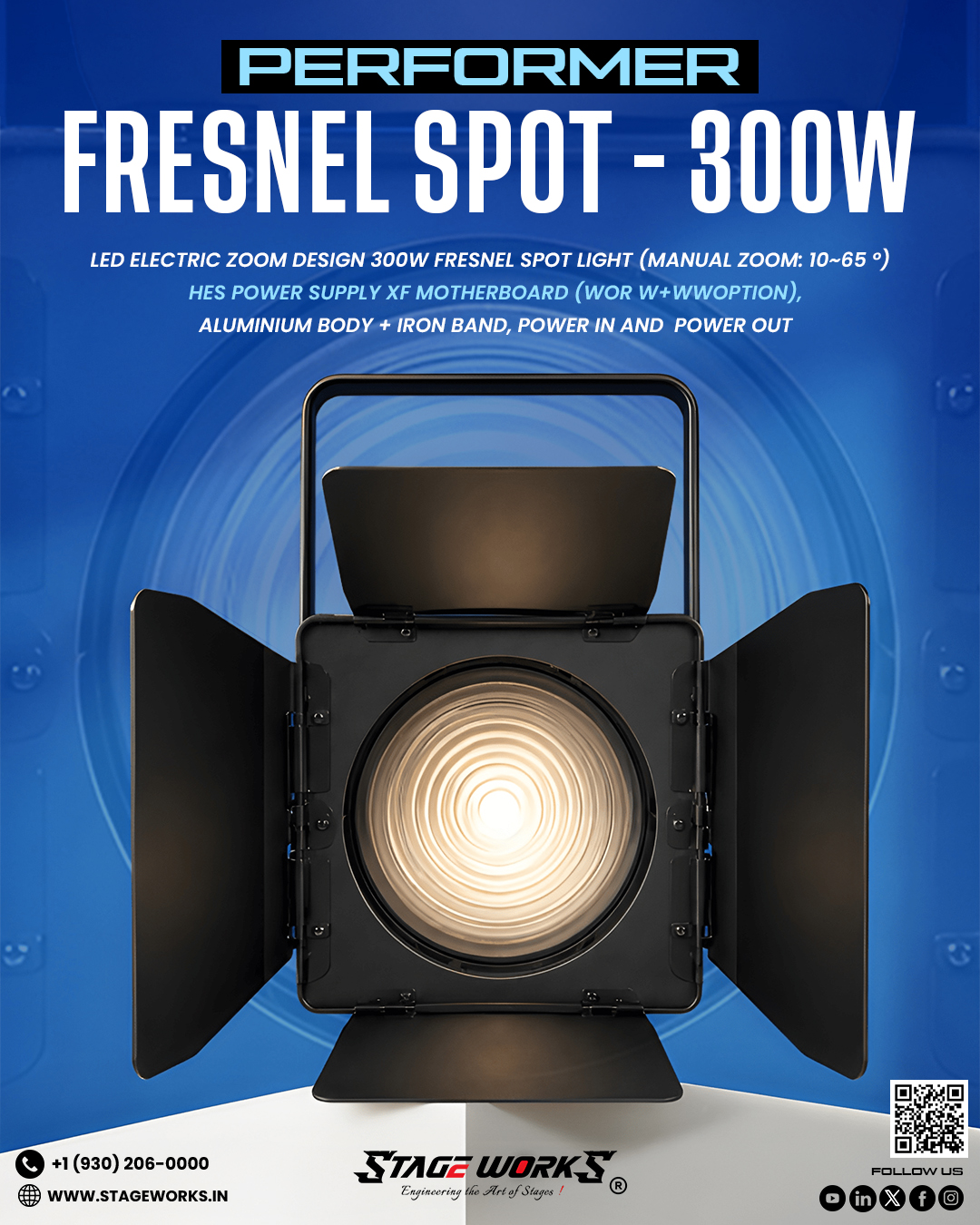

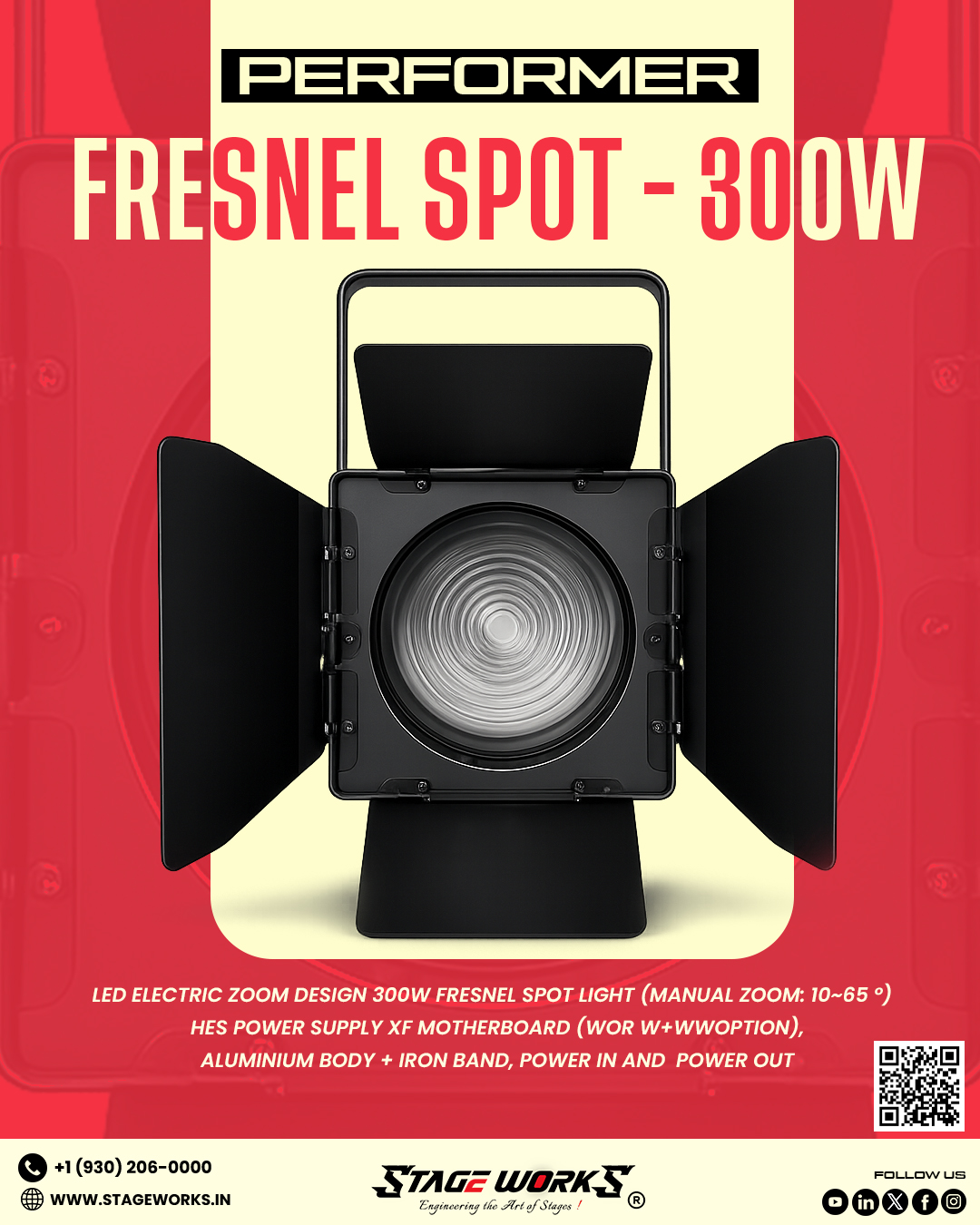

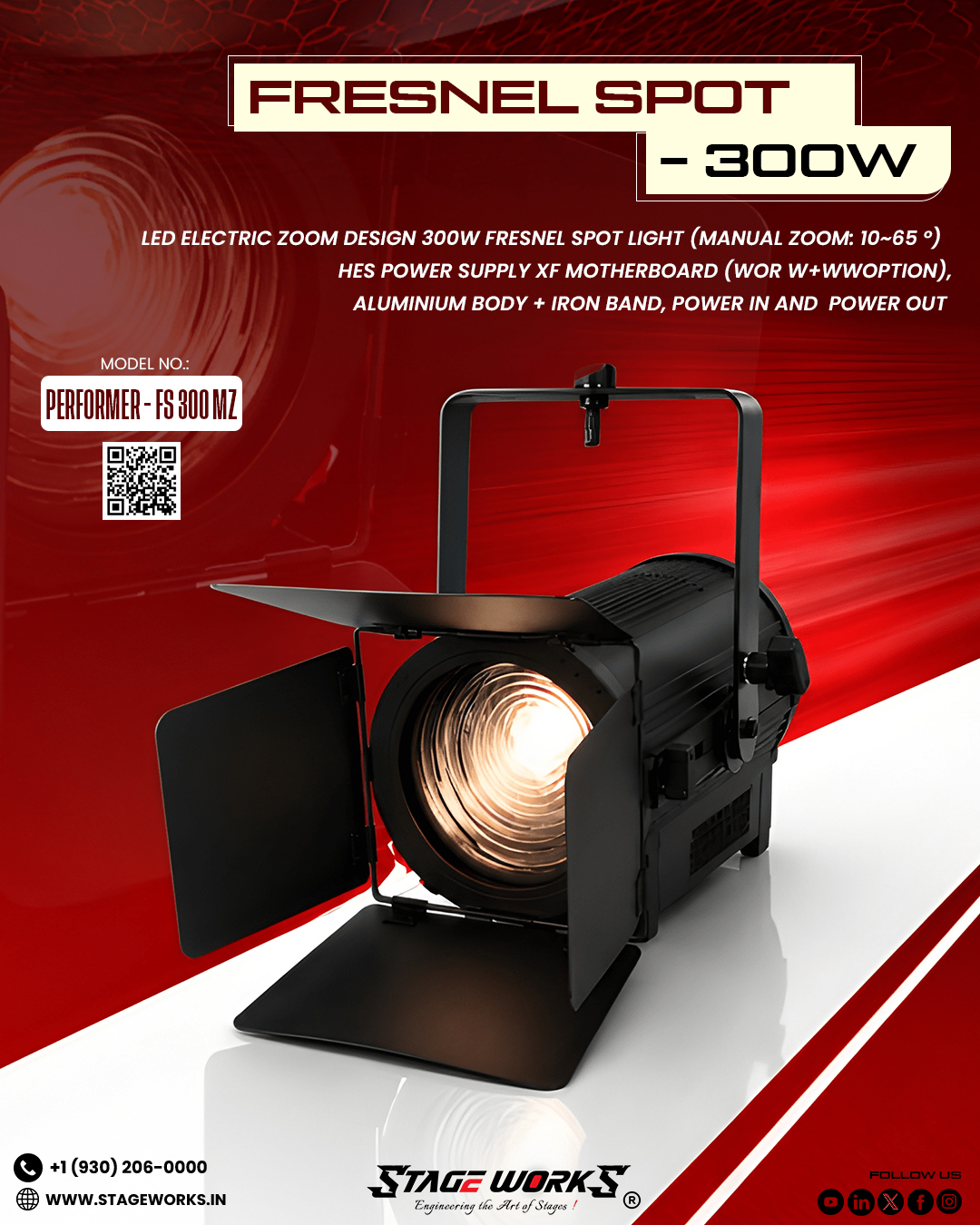

AI PERFORMER - FS 300 MZ 300W Fresnel Spotlight with Manual Zoom
Theater-grade 300W COB LED Fresnel spot with smooth 15°–50° manual zoom mechanism, rotating 4-leaf barndoor, soft-edge diffusion, and CRI Ra ≥ 95.
Key Highlights
Light Source300W High-Efficiency COB LED
Rated Power300W
Input VoltageAC 110V-240V, 50/60Hz
Lens TypeHigh-Quality Borosilicate Glass Fresnel Lens
Beam Angle15° to 50° Continuously Variable Manual Zoom
Color Temperature3200K / 5600K Options
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 300W High-Efficiency COB LED |
| Rated Power | 300W |
| Input Voltage | AC 110V-240V, 50/60Hz |
| Lens Type | High-Quality Borosilicate Glass Fresnel Lens |
| Beam Angle | 15° to 50° Continuously Variable Manual Zoom |
| Color Temperature | 3200K / 5600K Options |
| Color Rendering Index (CRI) | Ra ≥ 95 |
| Dimming | 0–100% Flicker-Free Linear Dimming |
| Control Modes | DMX512 (3CH / 5CH) & Manual Dimming |
| Control Interface | Digital LCD Display with 4 Control Buttons |
| Included Accessories | Heavy-Duty 4-Leaf Rotating Barndoor, Gel Frame |
| Protection Rating | IP20 |
| Dimensions (L x W x H) | 390 x 180 x 220 mm |
| Net Weight | 7.0 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
