Profile SpotlightSKU: AI-NOVA-FS400In Production

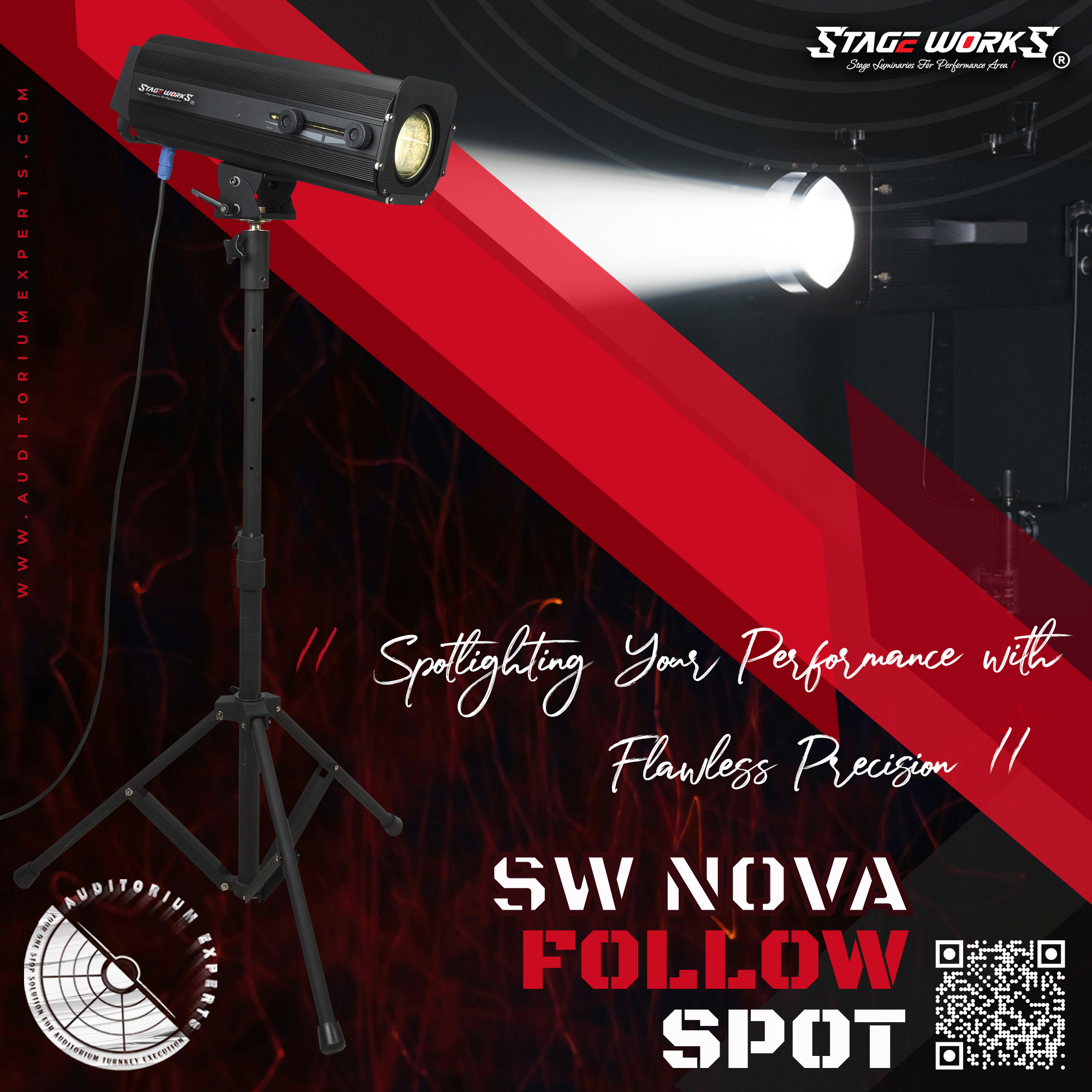

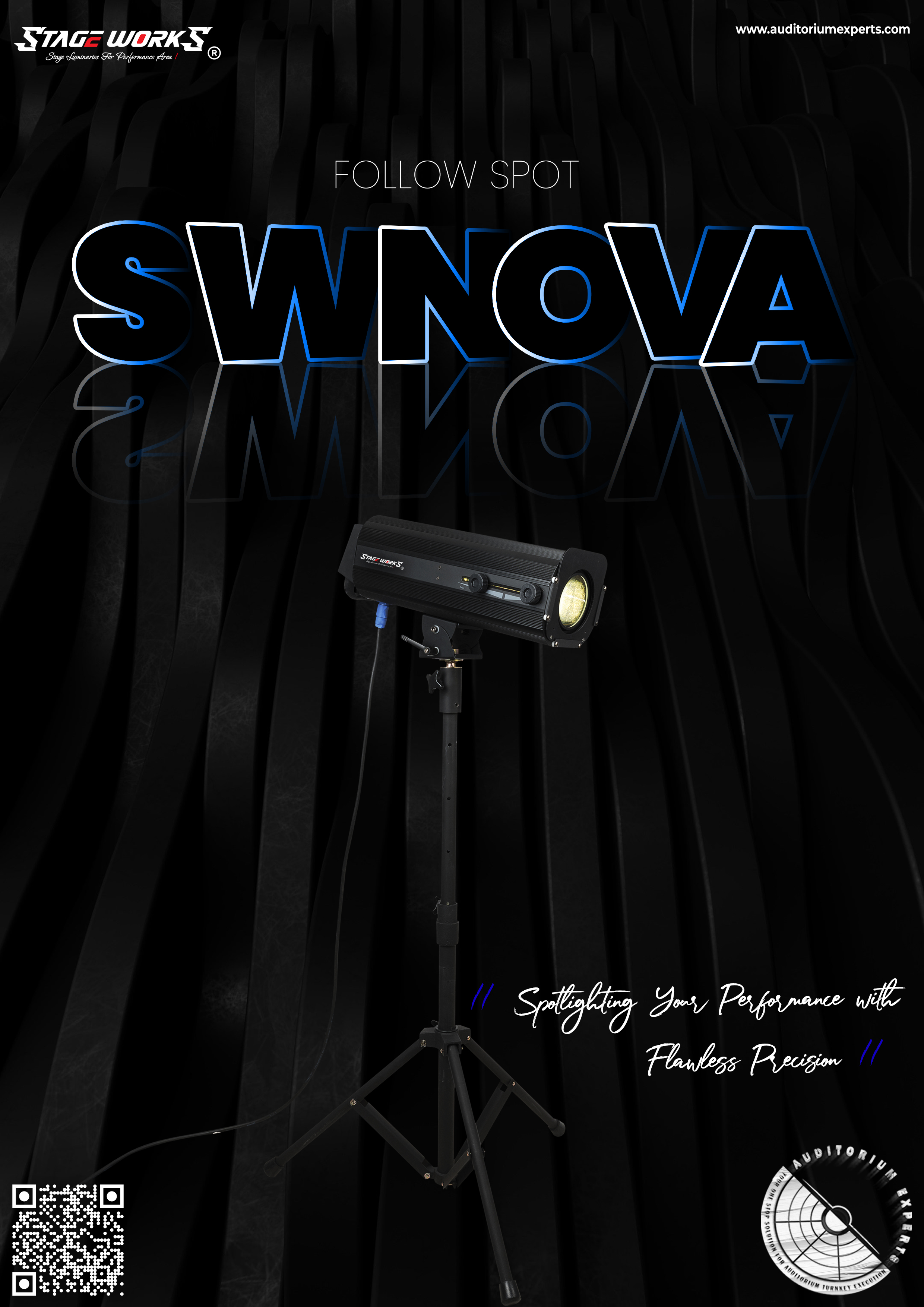

AI NOVA - FS 400 400W LED Follow Spot Light
Professional 400W high-output LED follow spot luminaire with 8°–15° beam angle, 5 dichroic color wheels plus white, manual iris aperture control, smooth mechanical dimmer, and 30–40m effective projection throw.
Key Highlights
Light Source400W High-Power LED Light Engine
Total Power Consumption500W
Input VoltageAC 110V–240V, 50/60Hz
Beam Angle8° – 15° Manual Zoom
Effective Throw Distance30 – 40 Meters
Color System5 Dichroic Colors + White (Red, Yellow, Blue, Green, Orange) + CTO Warm Filter
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 400W High-Power LED Light Engine |
| Total Power Consumption | 500W |
| Input Voltage | AC 110V–240V, 50/60Hz |
| Beam Angle | 8° – 15° Manual Zoom |
| Effective Throw Distance | 30 – 40 Meters |
| Color System | 5 Dichroic Colors + White (Red, Yellow, Blue, Green, Orange) + CTO Warm Filter |
| Iris Aperture Control | Stepless Manual Iris Mechanism |
| Focusing | Smooth Manual Optical Lens Focus |
| Strobe & Dimming | Mechanical / Electronic Dimmer & High-Speed Strobe |
| Cooling System | Forced Air with Copper Heat Pipes & Ultra-Quiet Fans |
| Tripod Stand | Heavy-Duty Telescopic Steel Stand Included (5 kg) |
| Packaging & Weight | Light Body: 17 kg | Stand: 5 kg | Flight Case Package: 45 kg |
| Ingress Protection | IP20 |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
