Wash & Flood LuminaireSKU: AI-FORCE-19WIn Production

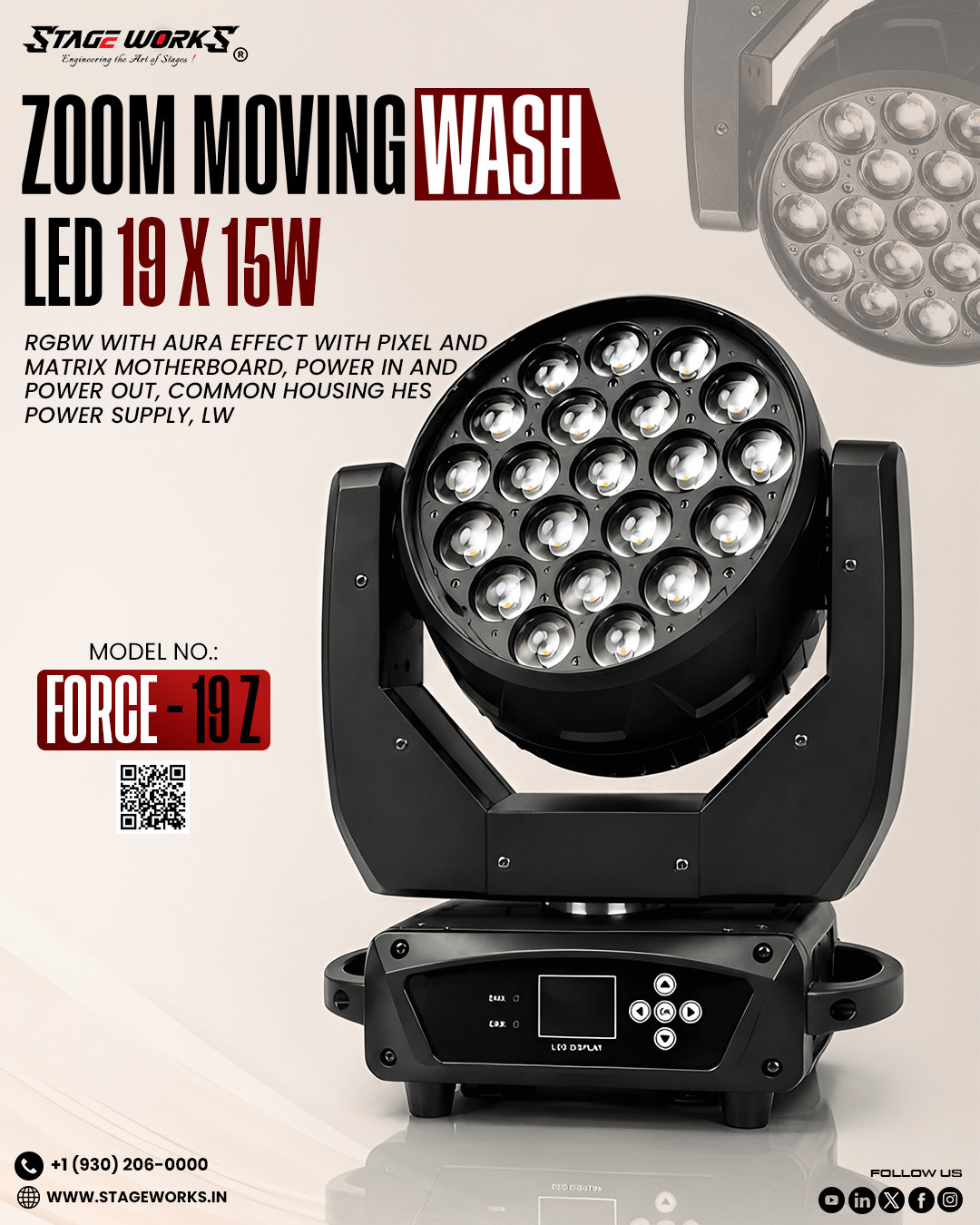

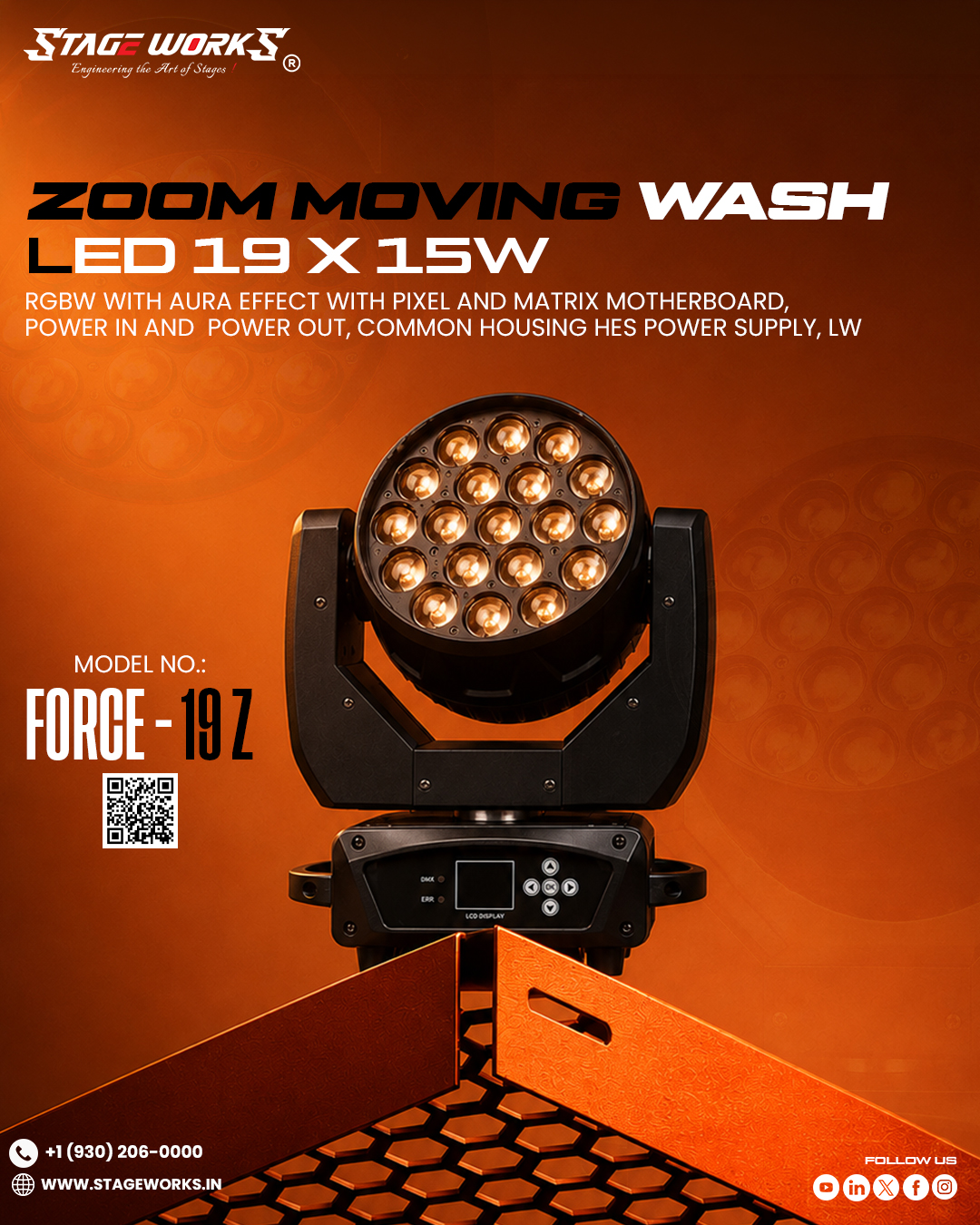

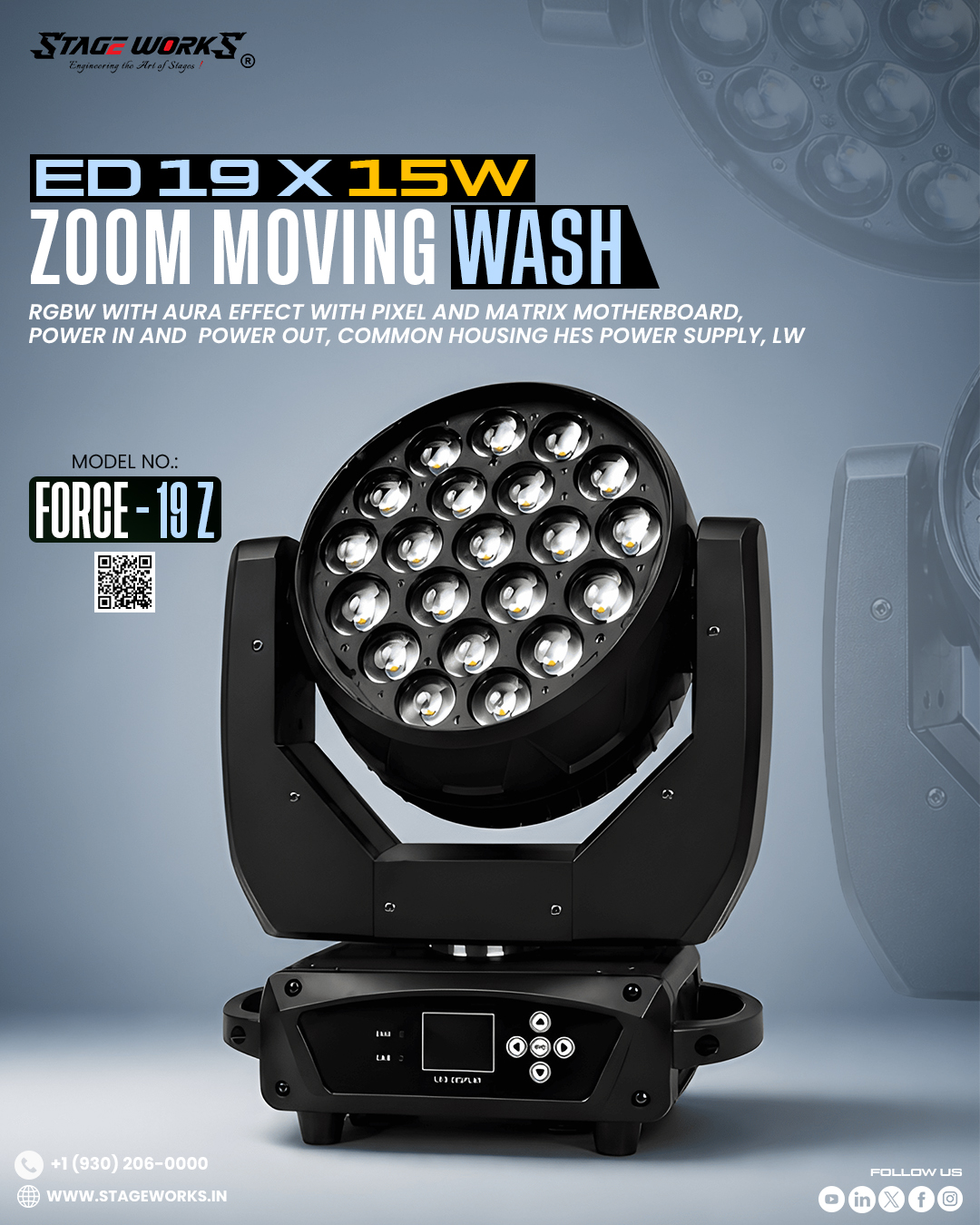

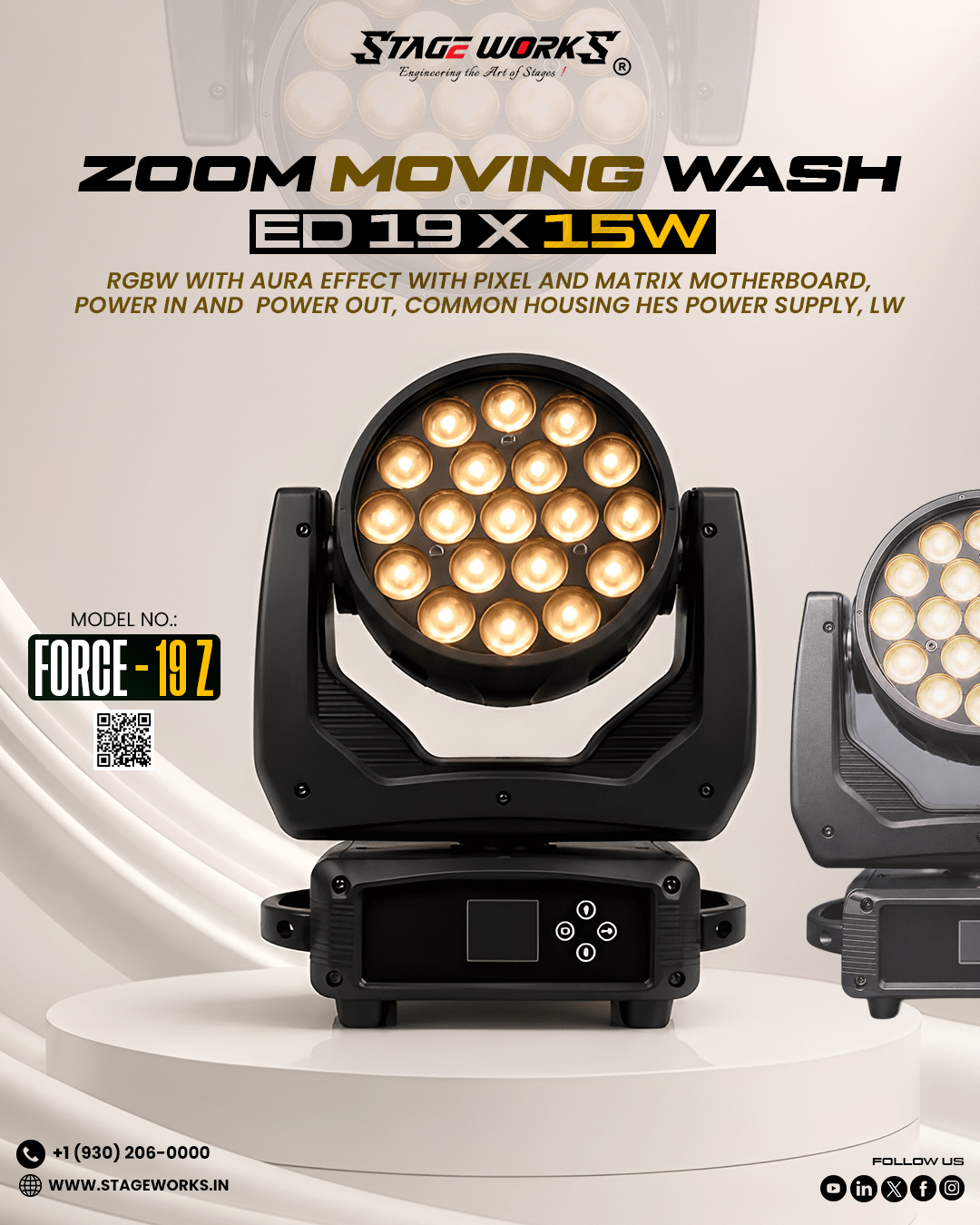

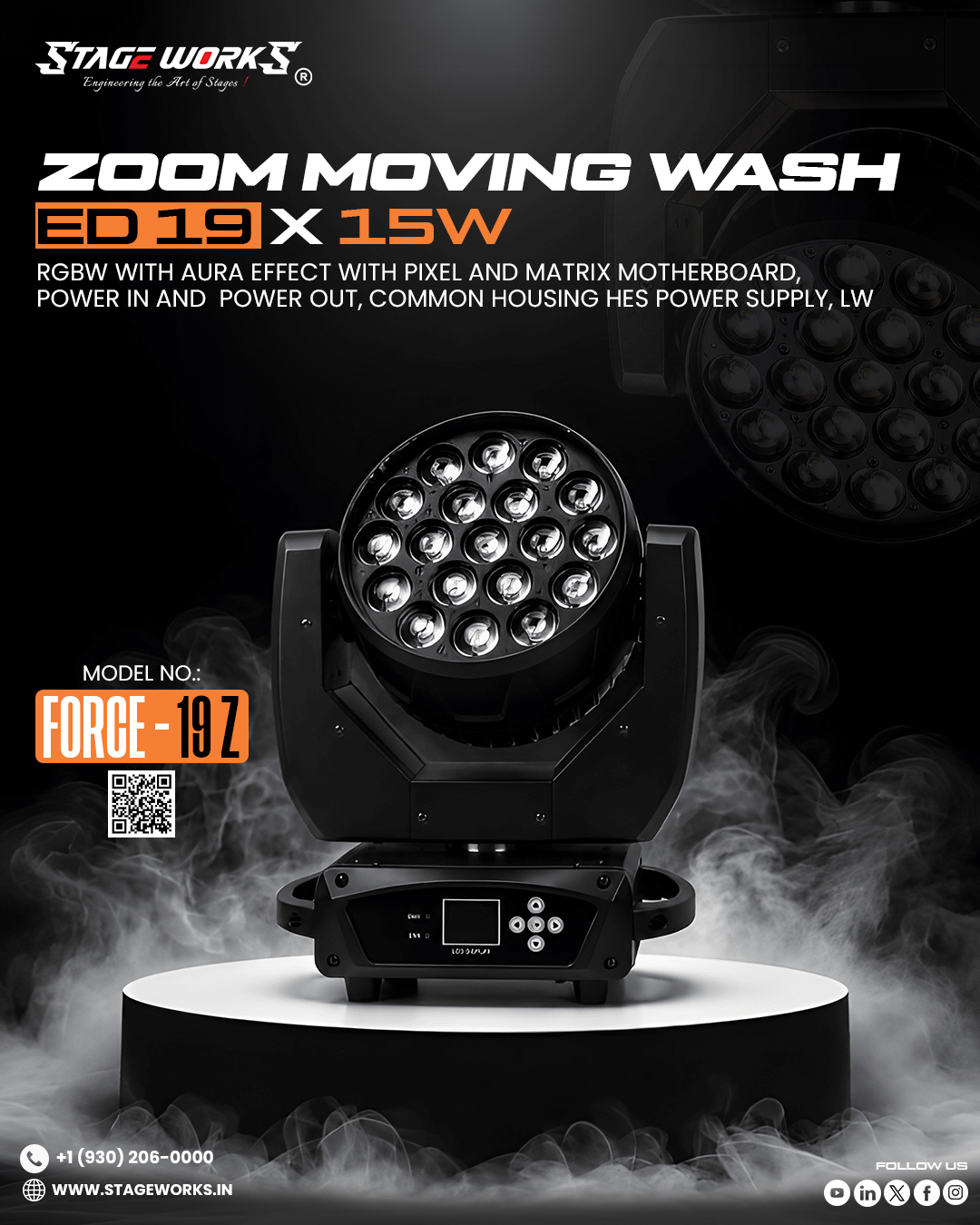

AI FORCE - 19W RGBW Zoom Moving Wash Light
High-output 200W LED zoom moving wash fixture powered by 19x 5050 4-in-1 RGBW LEDs with smooth 32-bit linear dimming, motorized zoom, and RDM control.
Key Highlights
Light Source19 x 15W 5050 RGBW 4-in-1 LEDs + 114 x 5050 3-in-1 Aura LEDs
Rated Power200W
Input VoltageAC 110V-240V, 50/60Hz
Dimming Curve32-Bit 0–100% Linear Flicker-Free Dimming
Strobe Rate1–30 Hz Electronic High-Speed Strobe
Control ModesDMX512, RDM, Auto-Run, Voice-Activated, Master/Slave
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 19 x 15W 5050 RGBW 4-in-1 LEDs + 114 x 5050 3-in-1 Aura LEDs |
| Rated Power | 200W |
| Input Voltage | AC 110V-240V, 50/60Hz |
| Dimming Curve | 32-Bit 0–100% Linear Flicker-Free Dimming |
| Strobe Rate | 1–30 Hz Electronic High-Speed Strobe |
| Control Modes | DMX512, RDM, Auto-Run, Voice-Activated, Master/Slave |
| DMX Channels | 22CH / 30CH / 84CH Modes |
| Pan / Tilt | Pan 540°, Tilt 270° with Fast Silent Stepper Motors |
| Operating Temperature | -30°C to +50°C |
| Housing & Finish | High-Impact Flame Retardant Polymer, Matte Black |
| Ingress Protection | IP20 |
| Dimensions (L x W x H) | 300 x 210 x 370 mm |
| Net Weight | 6.3 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
