Moving Head BeamSKU: AI-EAGLE-32In Production

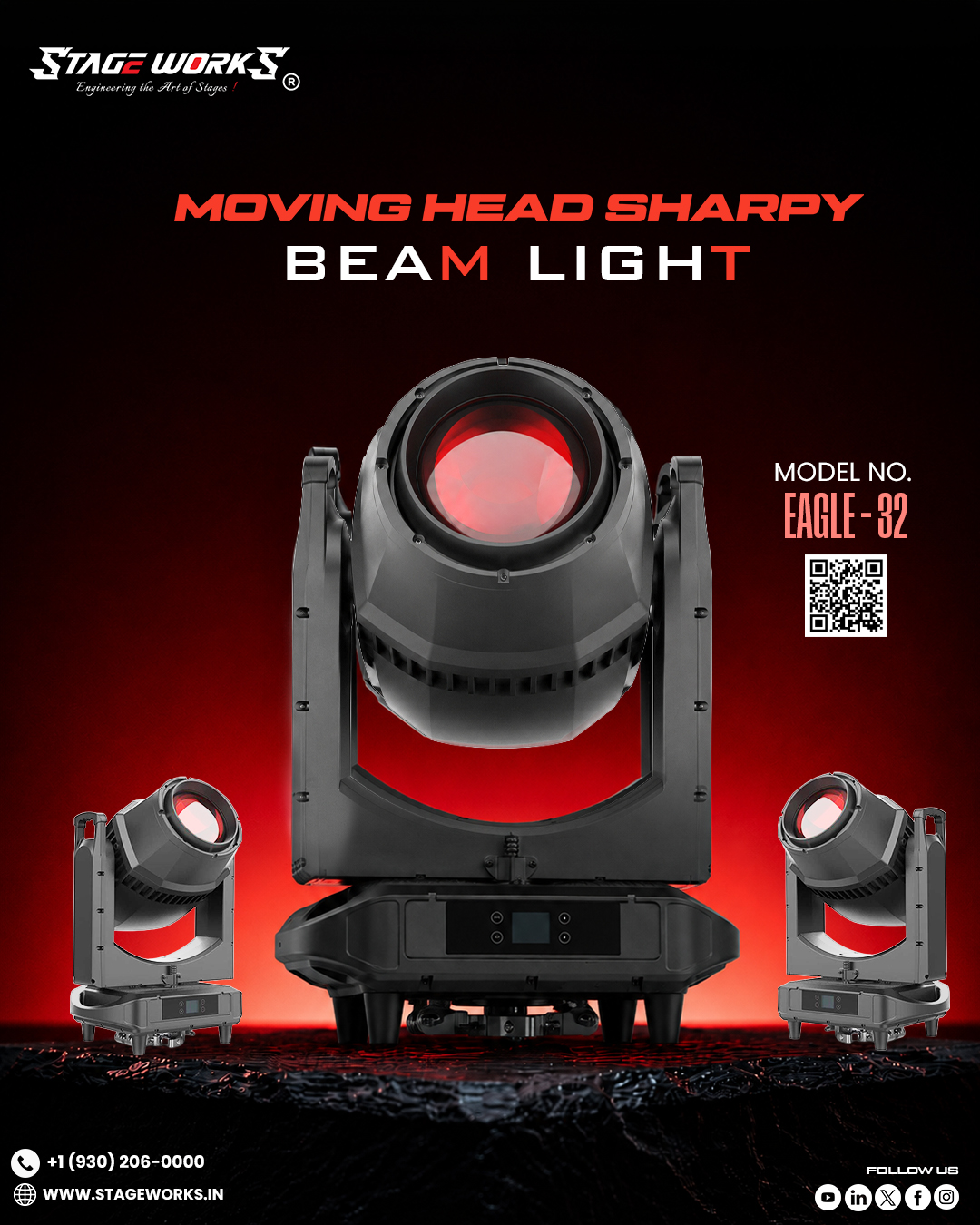

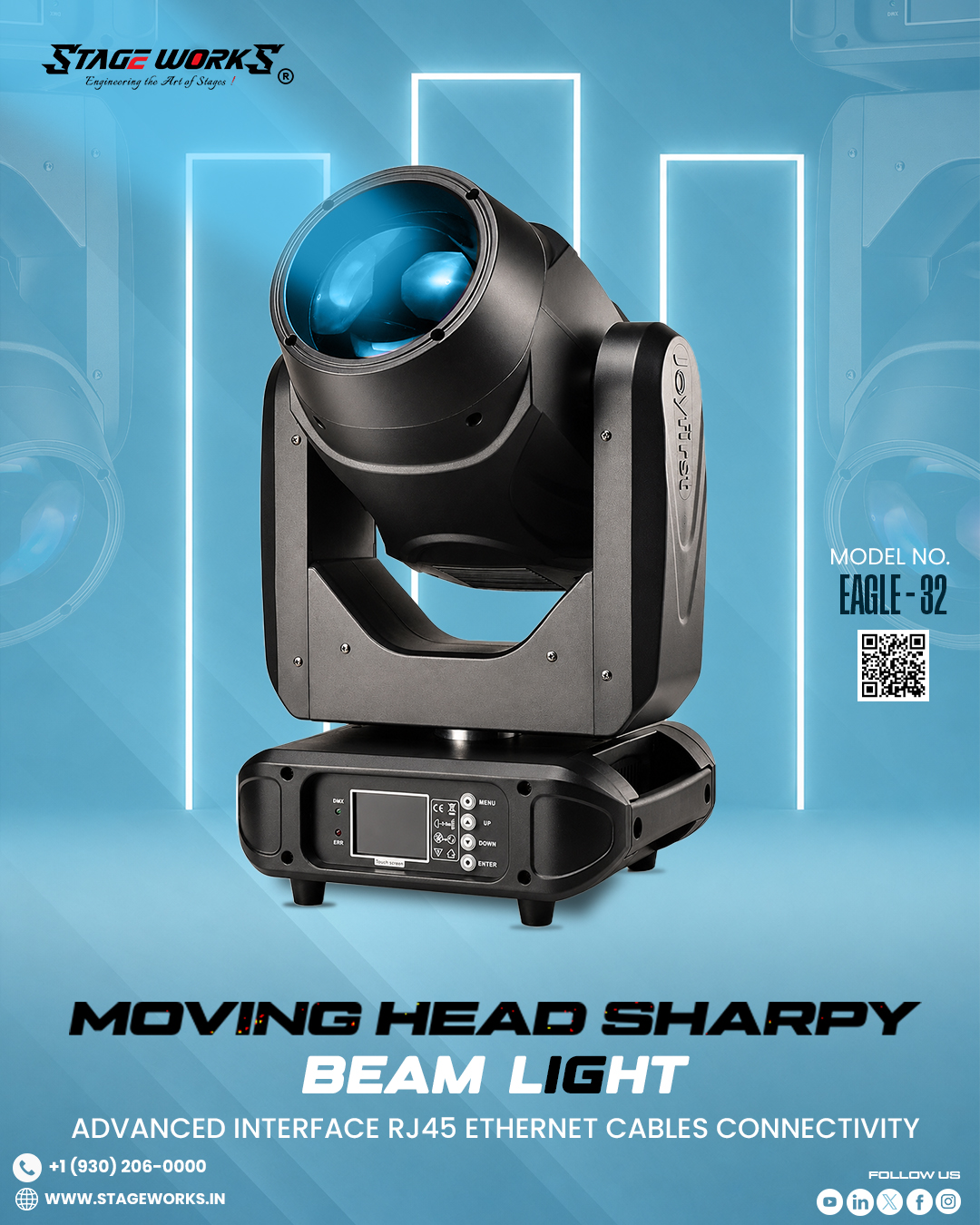

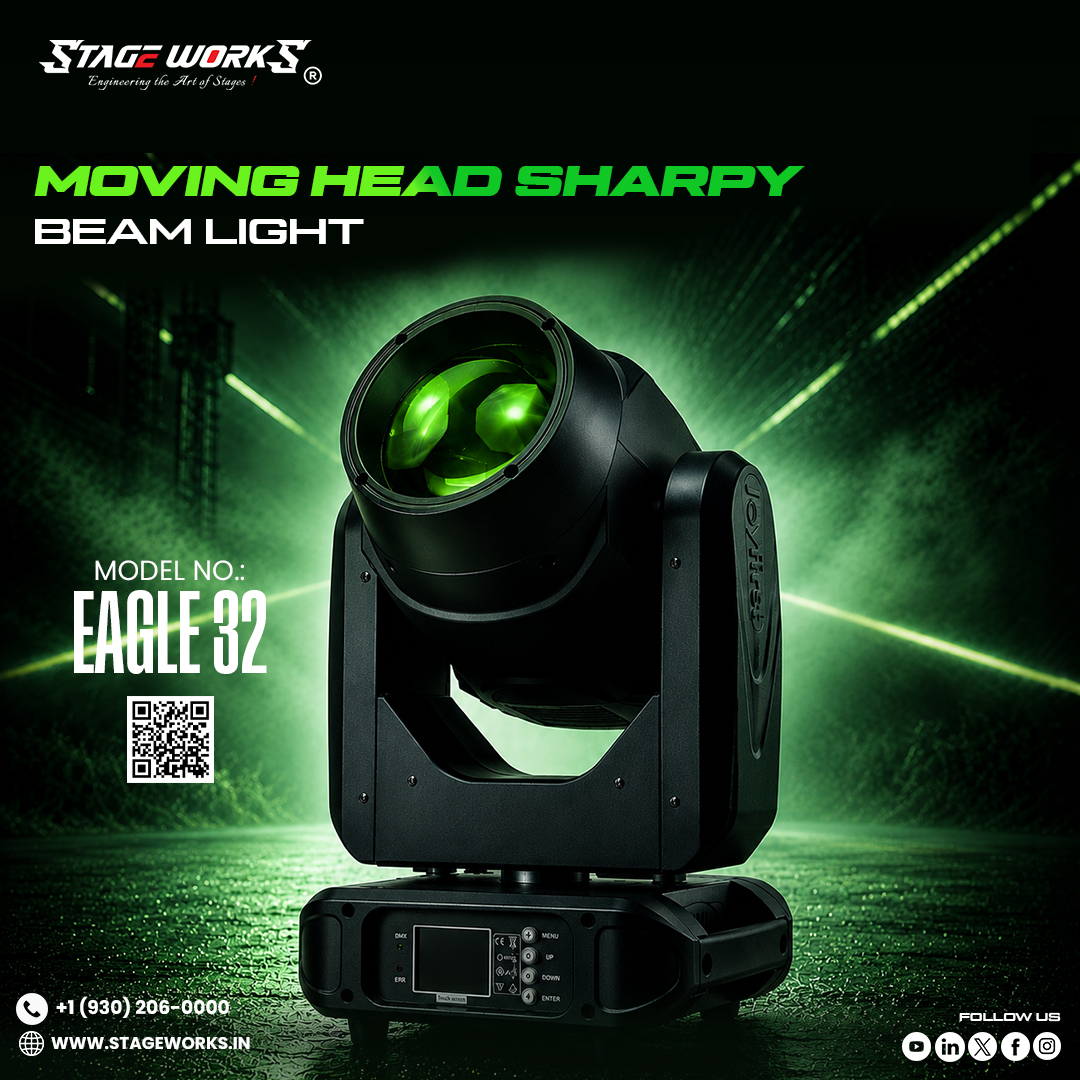

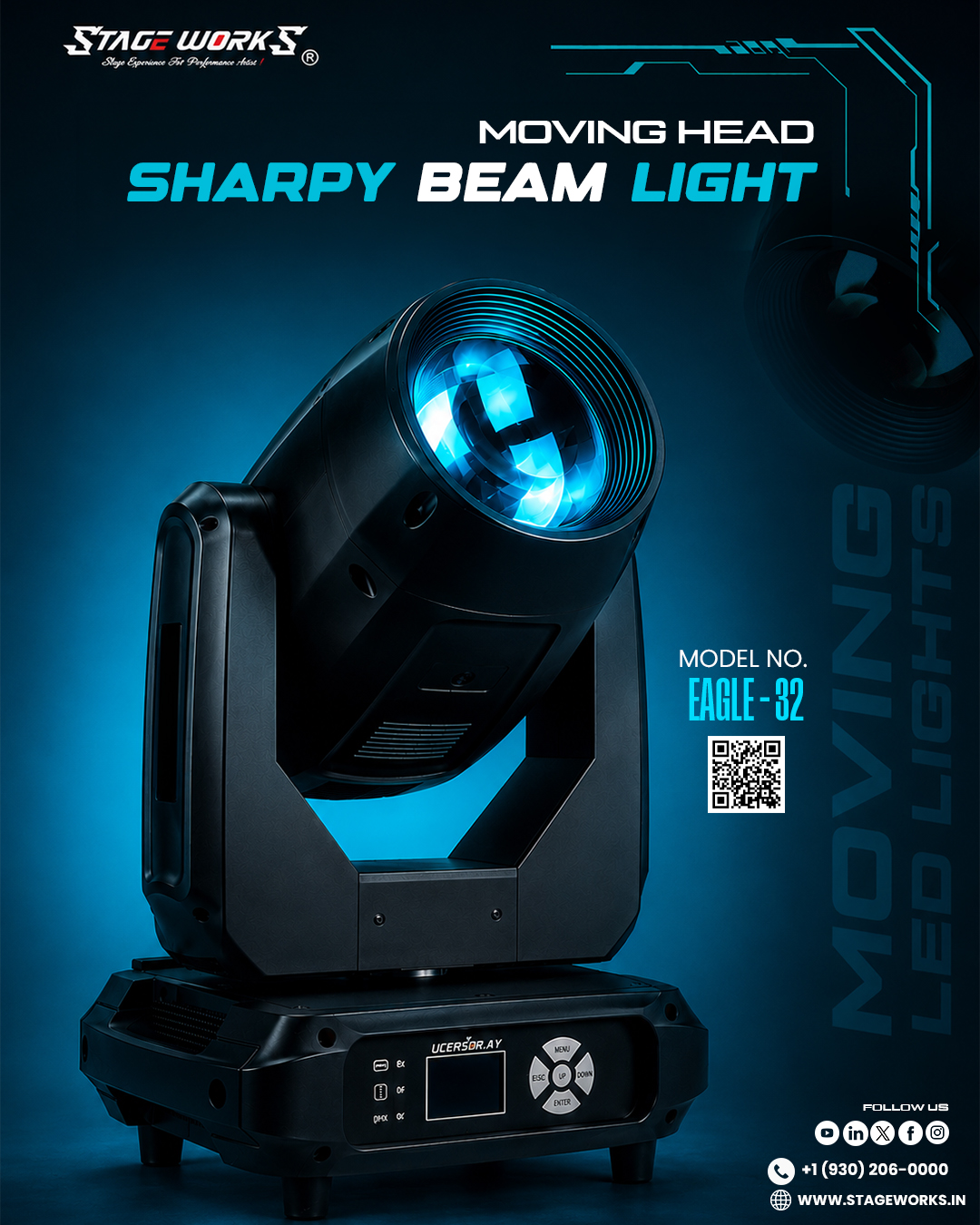

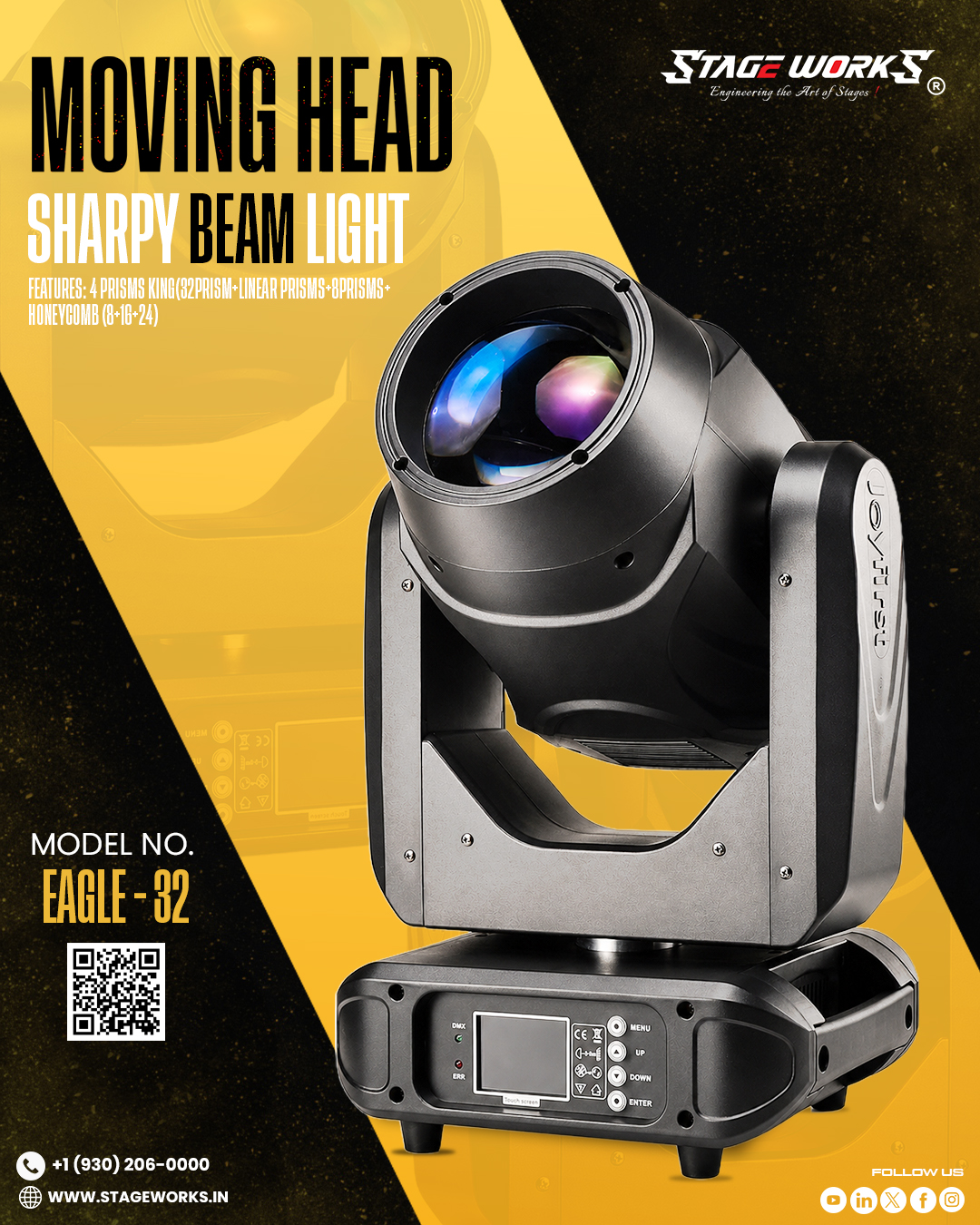

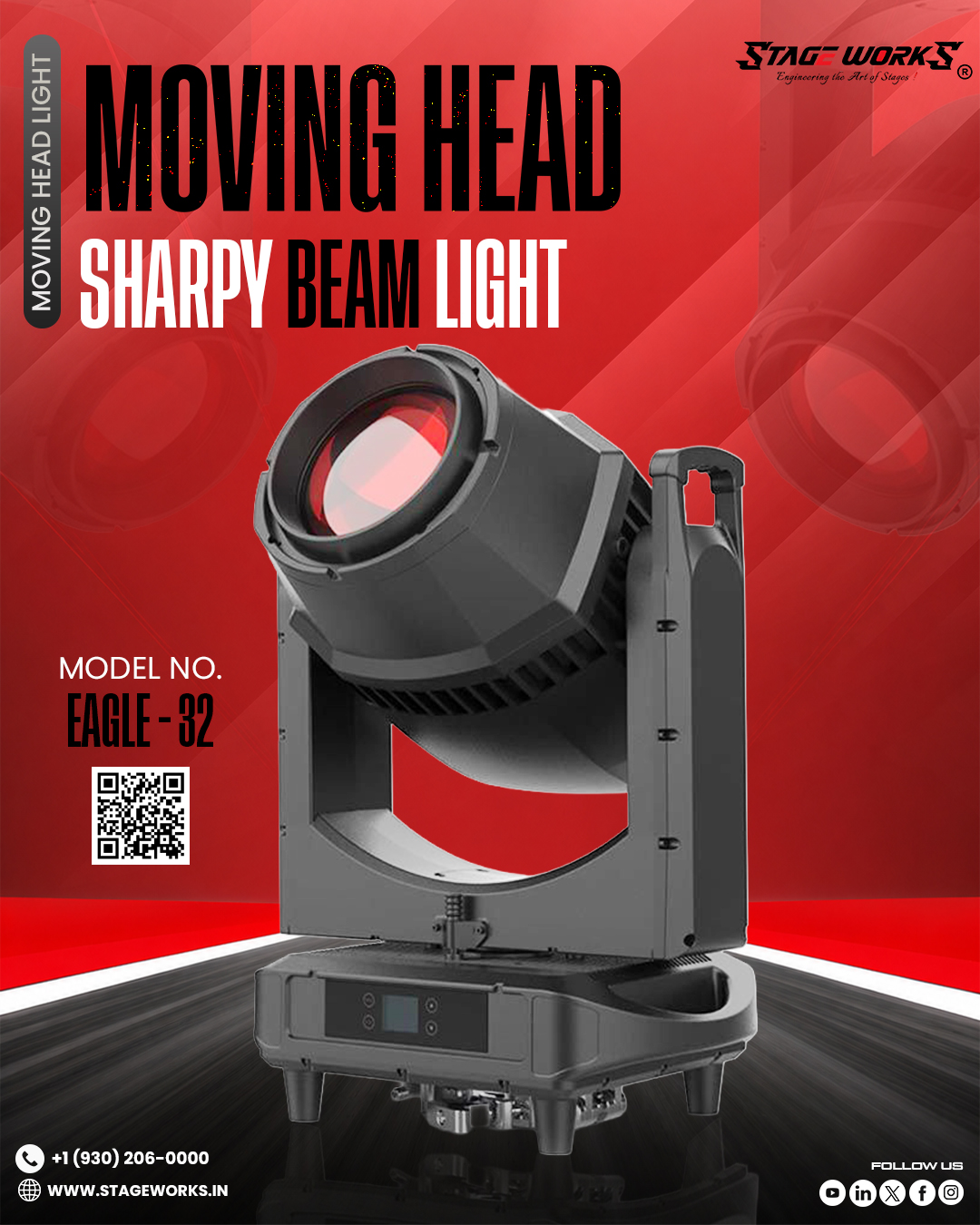

AI EAGLE - 32 Sharpy Beam 295W Moving Head Light
Professional 295W OSRAM moving head sharpy beam fixture featuring multi-prism stack effects, 13 colors + white, ultra-fast 540°/270° pan/tilt, and precision 1.6° beam optics.
Key Highlights
Light Source295W OSRAM Discharge Lamp (2,000 hrs avg lifespan)
Rated Power Consumption450W
Input VoltageAC 110V-240V, 50/60Hz
BallastHeavy-Duty 295W Transformer Inductive Ballast
Beam Angle1.6° Solid Parallel Beam
Color Wheel13 Dichroic Colors + White, Half-Color & Rainbow Effect
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 295W OSRAM Discharge Lamp (2,000 hrs avg lifespan) |
| Rated Power Consumption | 450W |
| Input Voltage | AC 110V-240V, 50/60Hz |
| Ballast | Heavy-Duty 295W Transformer Inductive Ballast |
| Beam Angle | 1.6° Solid Parallel Beam |
| Color Wheel | 13 Dichroic Colors + White, Half-Color & Rainbow Effect |
| Gobo Wheel | 13 Fixed Patterns + Open White with Gobo Shake |
| Prism System | 6-Facet Prism + 16-Facet Prism + 8/16/24 Multi-Layer Prism Stack (Bi-directional Rotation) |
| Prism Color Effects | 6 Dynamic Color Prism Macros |
| Focus & Dimming | Linear Electronic Focus, 0–100% Mechanical Dimming |
| Strobe | Mechanical Strobe 1–15 fps with Macro Pulse Effects |
| Pan / Tilt Range | Pan 540°, Tilt 270° with Automatic Photoelectric Reset |
| Control Modes | DMX512 (20 Channels), Auto-Run, Sound Active, Master/Slave |
| Display | Full-Color LCD Display with Inverted Orientation & Fixture Usage Timer |
| Ingress Protection | IP20 |
| Dimensions (L x W x H) | 305 x 230 x 535 mm |
| Net Weight | 12.05 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
