LED PAR CanSKU: AI-CHROMA-PAR-54In Production

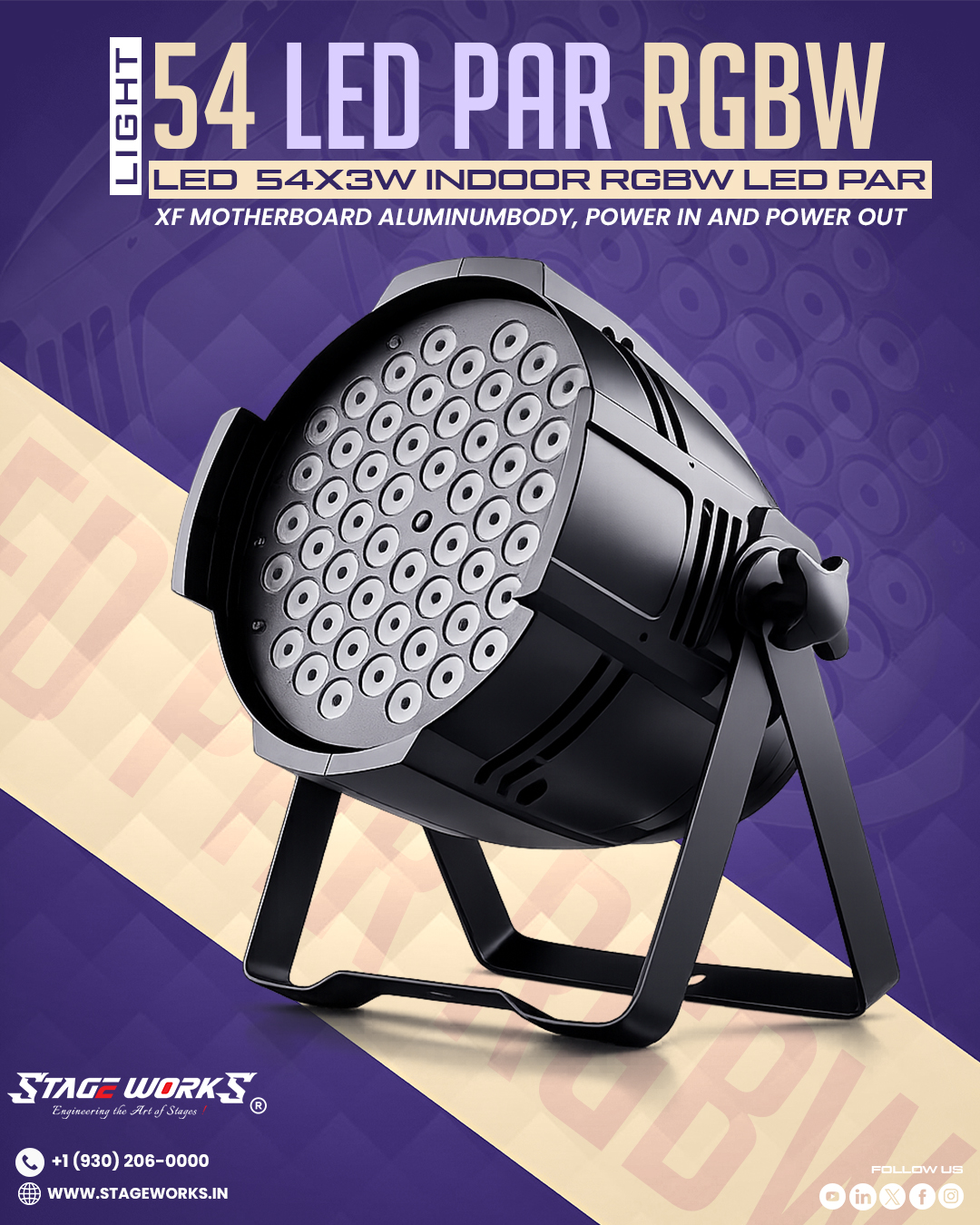

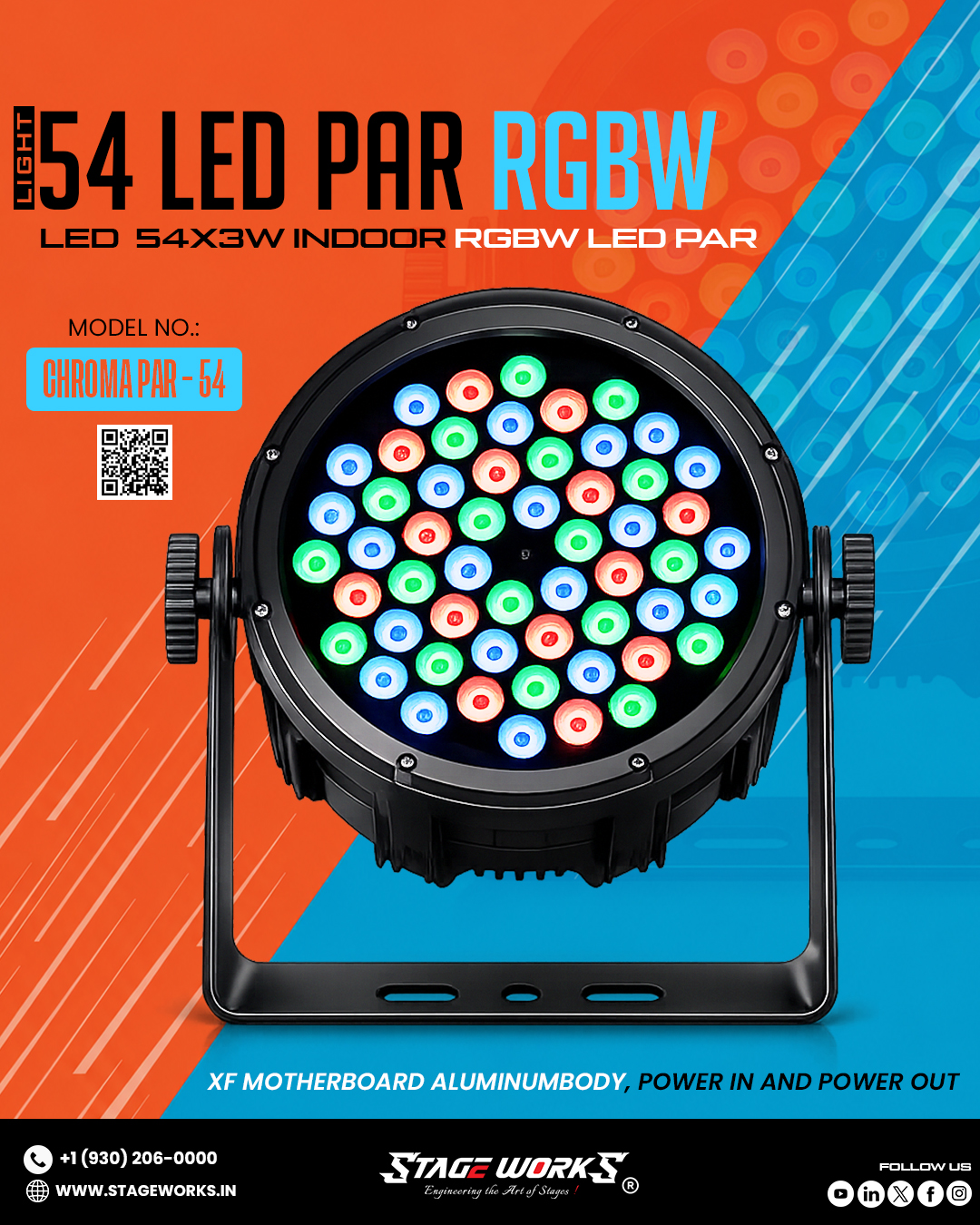

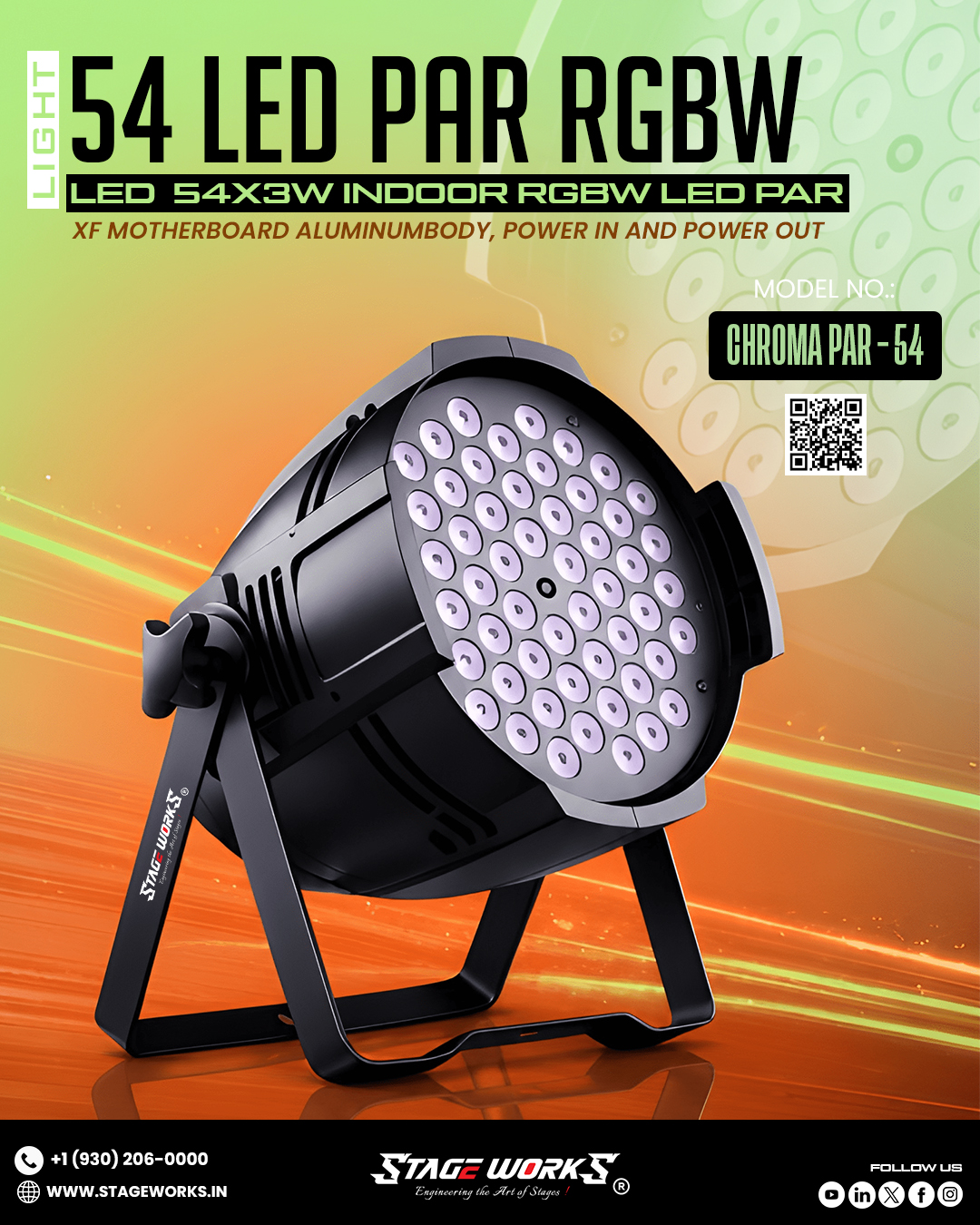

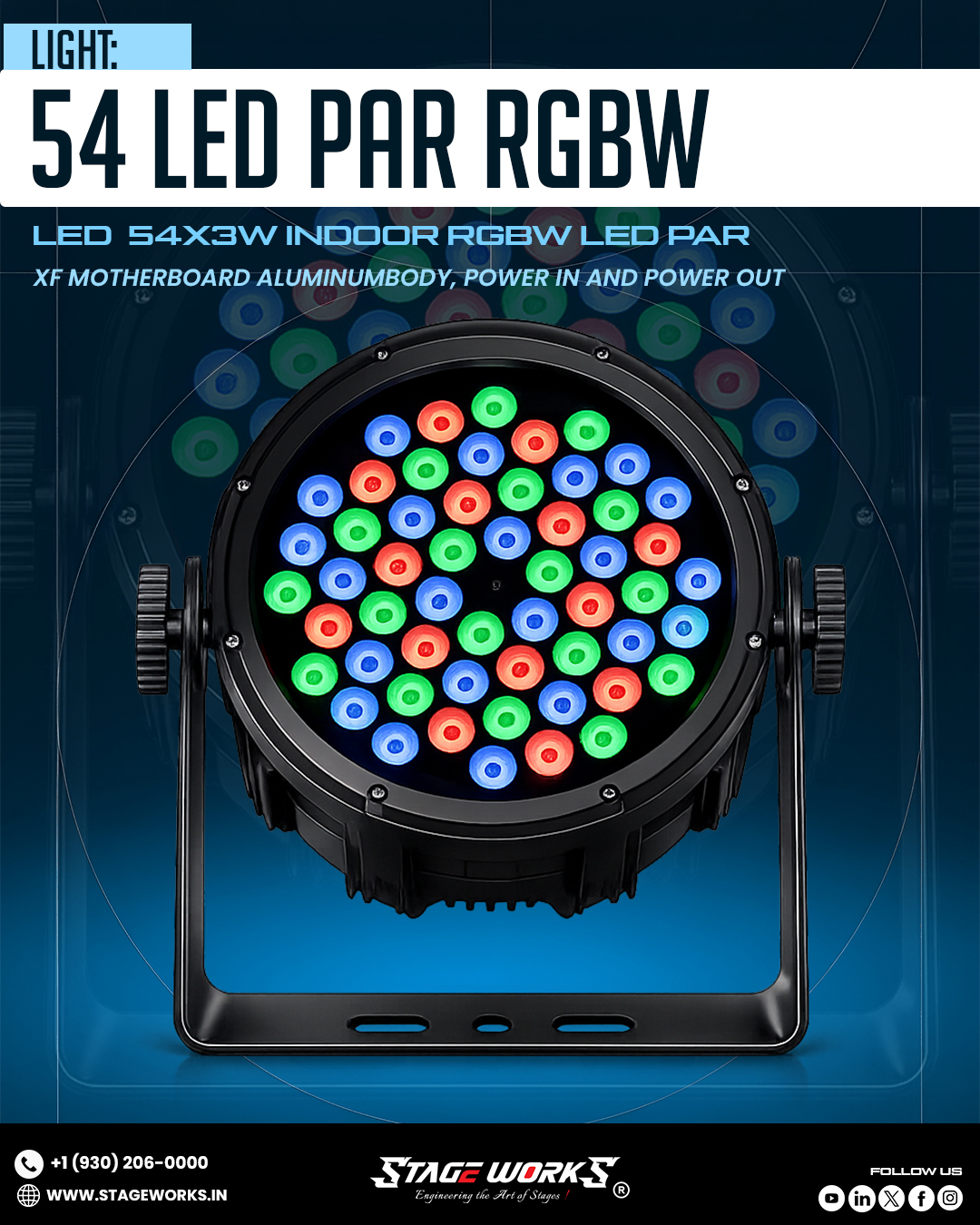

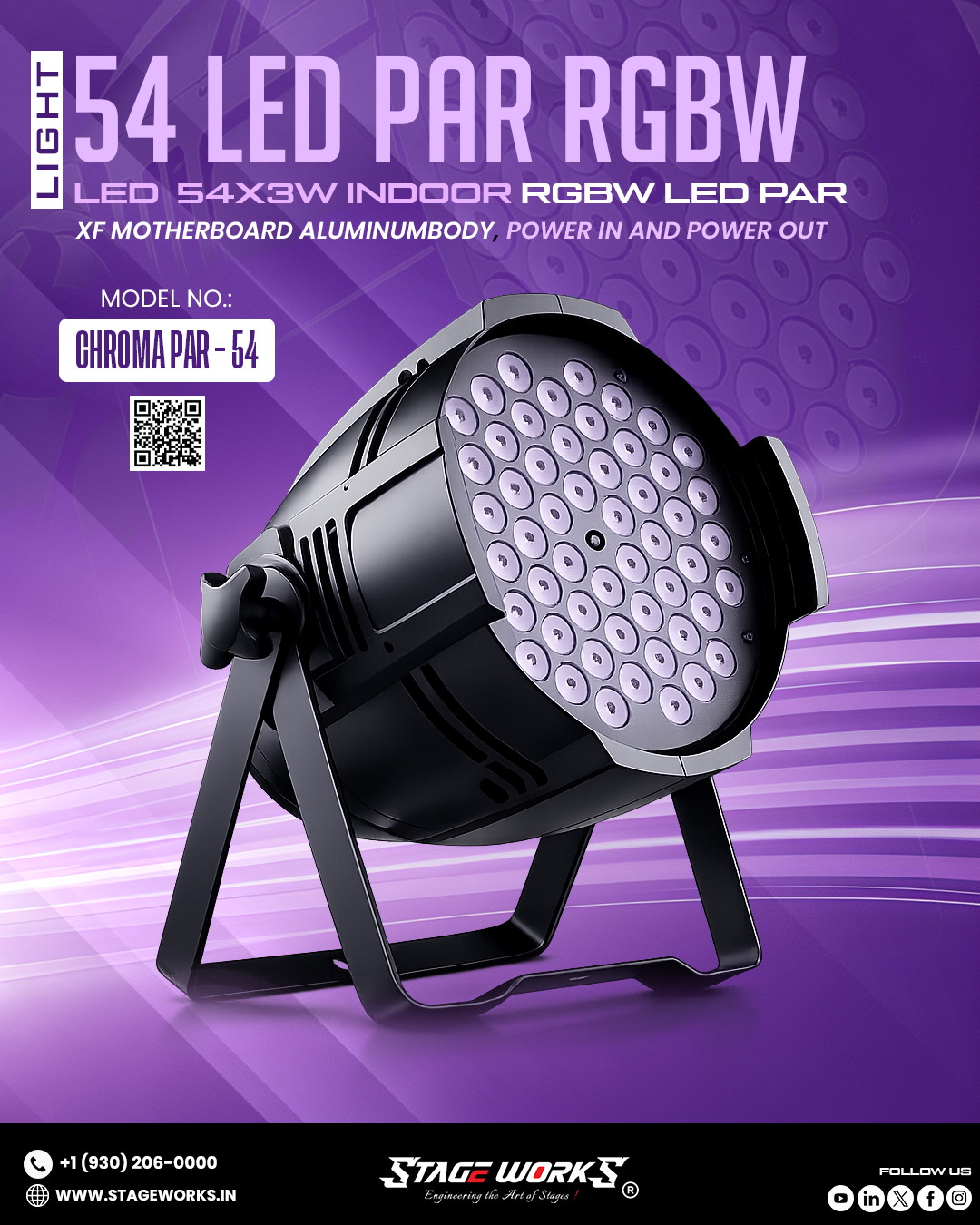

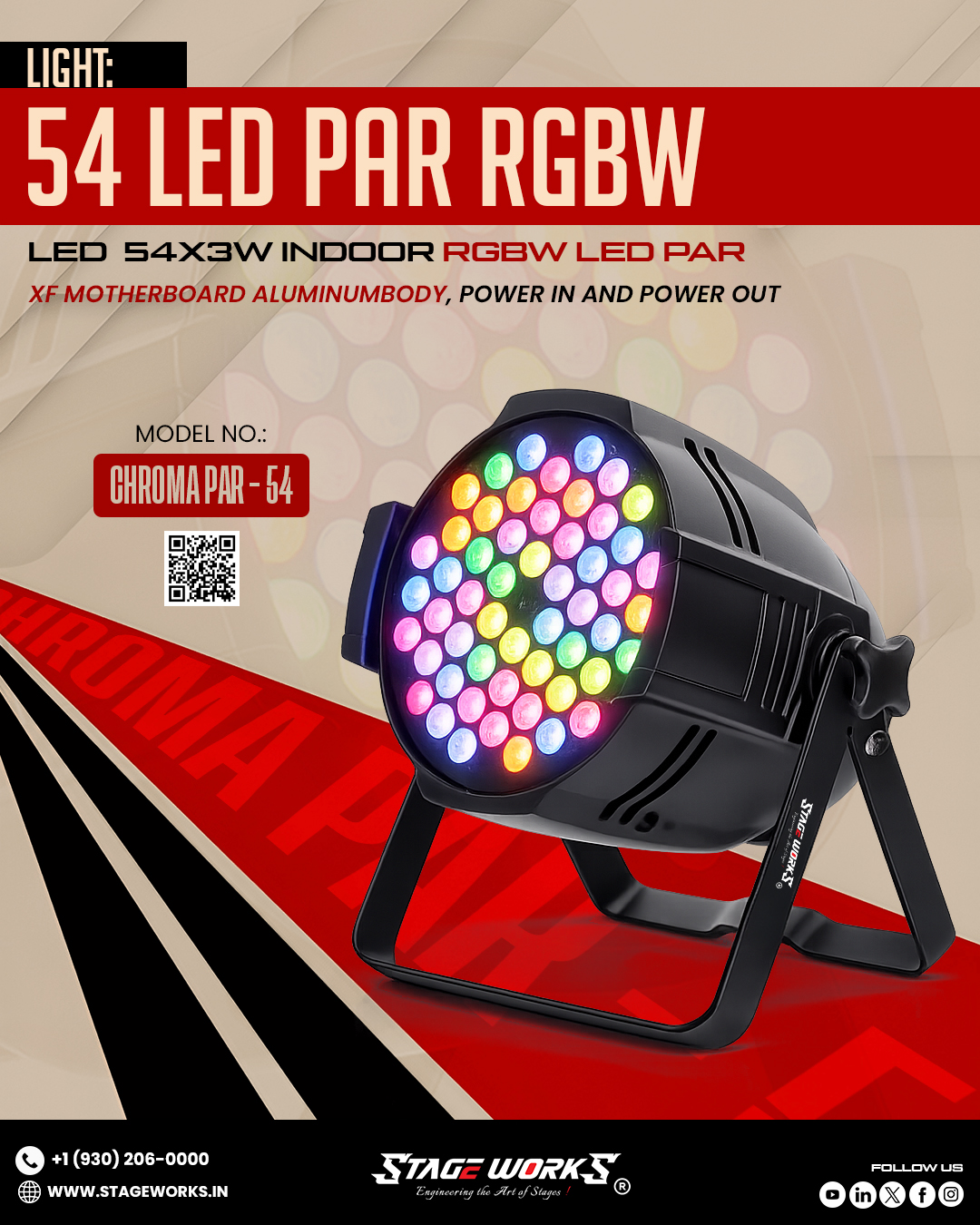

AI CHROMA PAR - 54 High-Brightness RGBW LED PAR Fixture
Classic die-cast aluminum 54x 3W high-brightness RGBW LED PAR fixture with 4-leaf barndoors, smooth electronic dimming, and vivid architectural/stage wash capabilities.
Key Highlights
Light Source54 x 3W High-Brightness LEDs (R12, G14, B14, W14)
Total Power Consumption160W
Input VoltageAC 90V-250V, 47–63Hz
LED Lifespan60,000 to 100,000 hours
Dimming0–100% Linear Electronic Dimming (Color Stable)
Strobe Rate1–13 Hz High-Speed Strobe
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 54 x 3W High-Brightness LEDs (R12, G14, B14, W14) |
| Total Power Consumption | 160W |
| Input Voltage | AC 90V-250V, 47–63Hz |
| LED Lifespan | 60,000 to 100,000 hours |
| Dimming | 0–100% Linear Electronic Dimming (Color Stable) |
| Strobe Rate | 1–13 Hz High-Speed Strobe |
| Control Protocol | USITT DMX-512 (8 Channels) |
| Operating Modes | DMX512, Master/Slave Synchronous, Auto-Run, Voice-Control |
| Connectors | 3-Pin XLR Data In/Out, Locking Power In/Out |
| Included Accessories | 4-Leaf Rotating Barndoor, Dual Hanging/Floor Yoke |
| Thermal Limits | Max Ambient: 40°C, Max Body: 60°C |
| Housing & Protection | Die-Cast Aluminum Alloy, IP20 |
| Net Weight | 4.2 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
