LED PAR CanSKU: AI-CHROMA-7EYE-350In Production

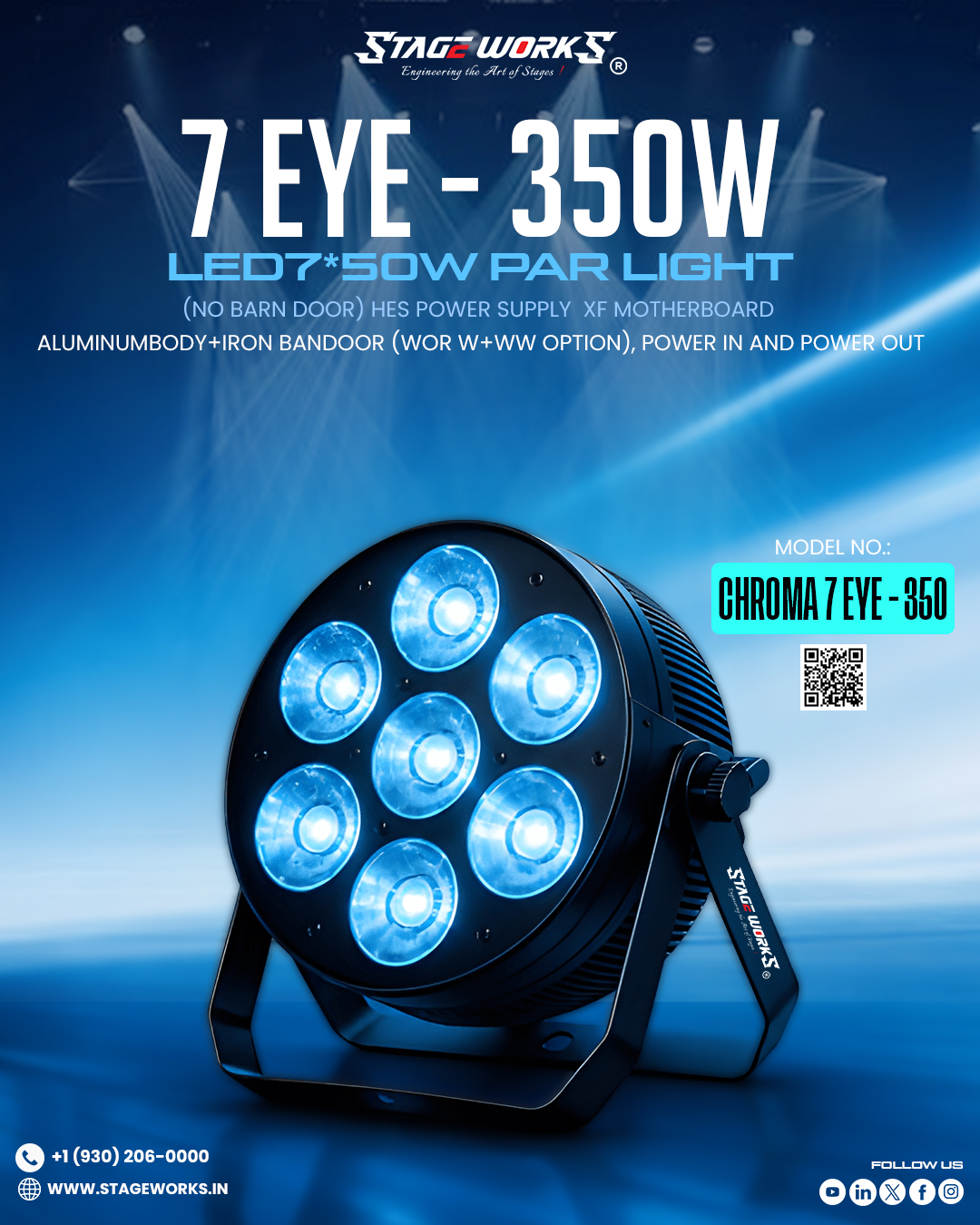

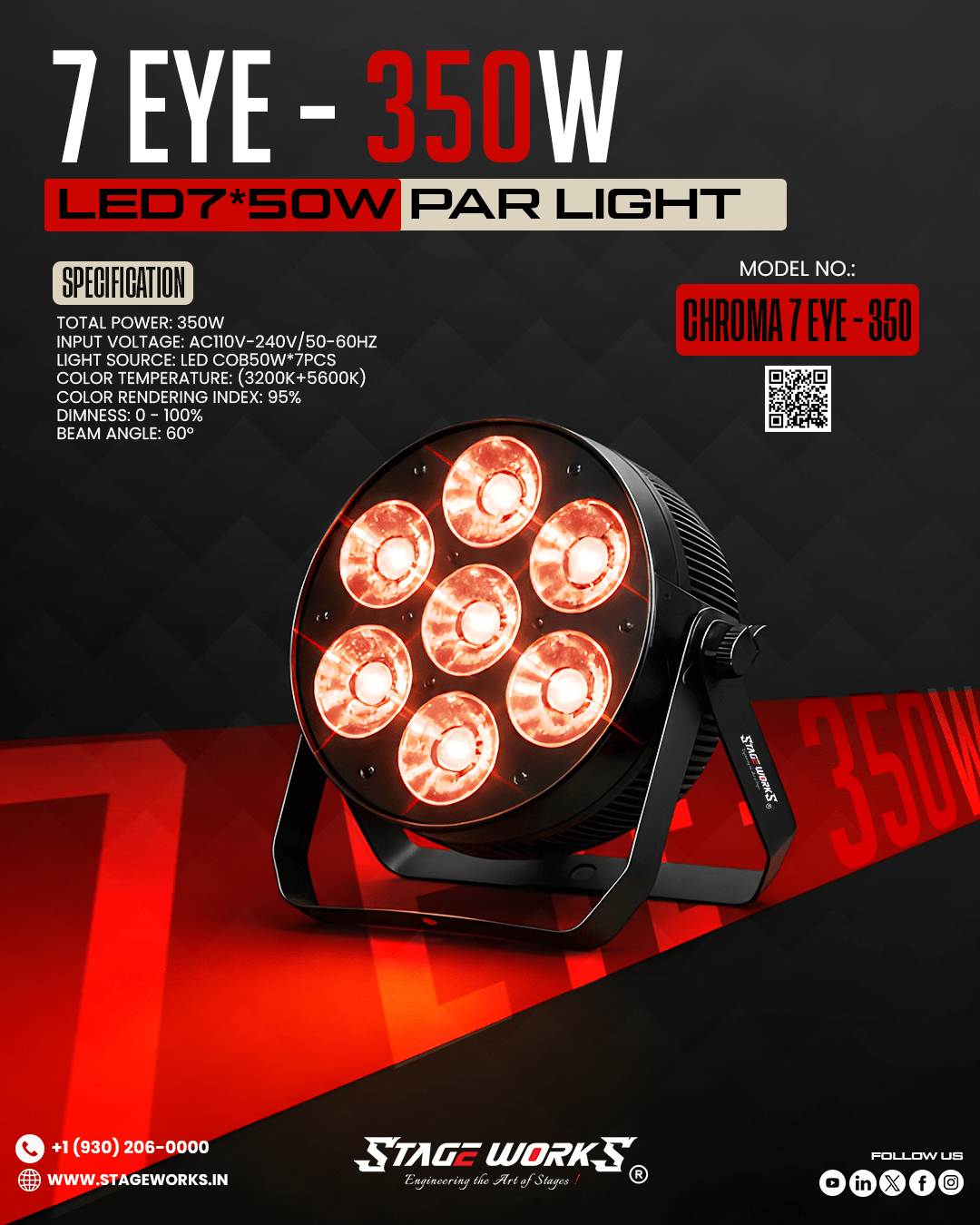

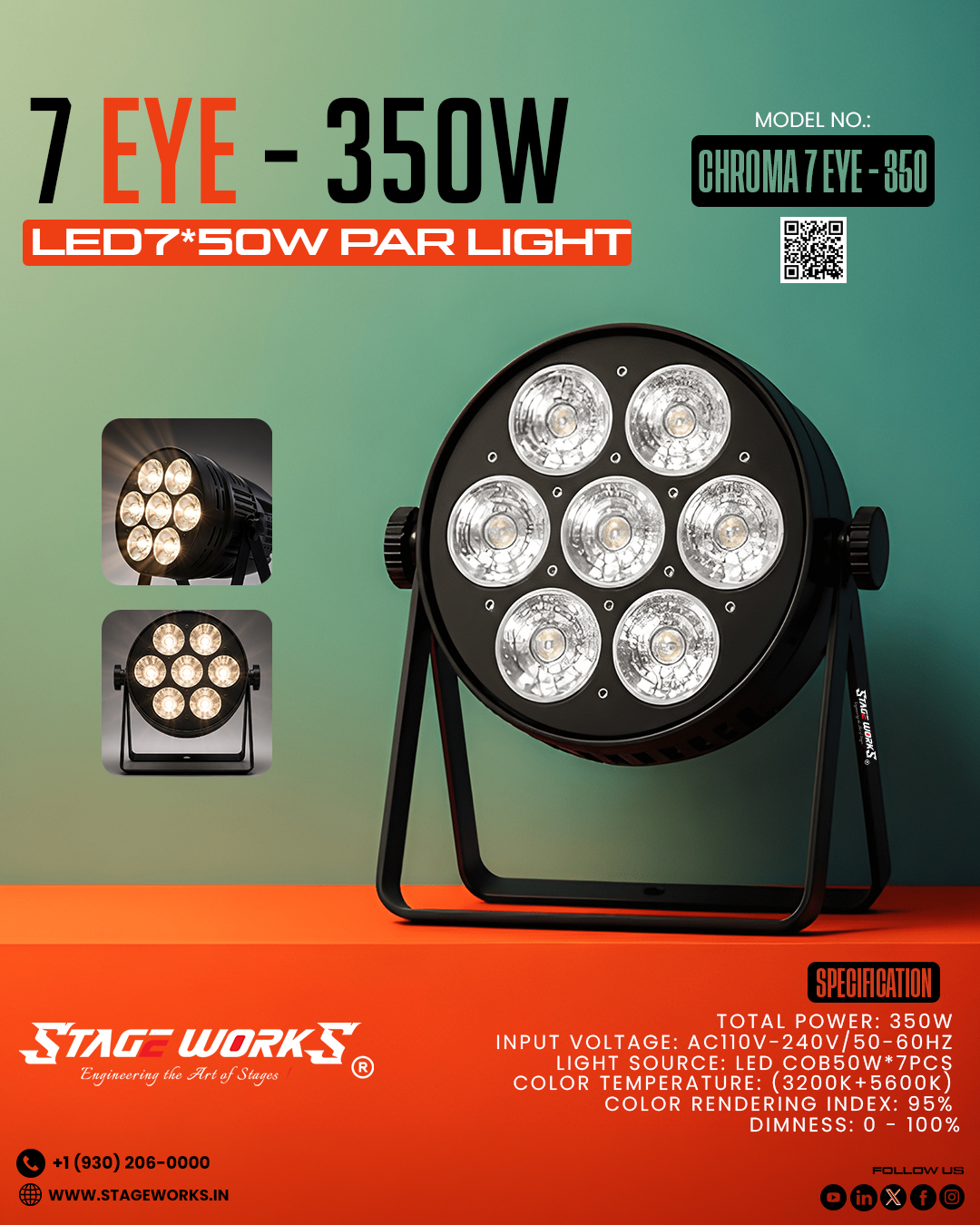

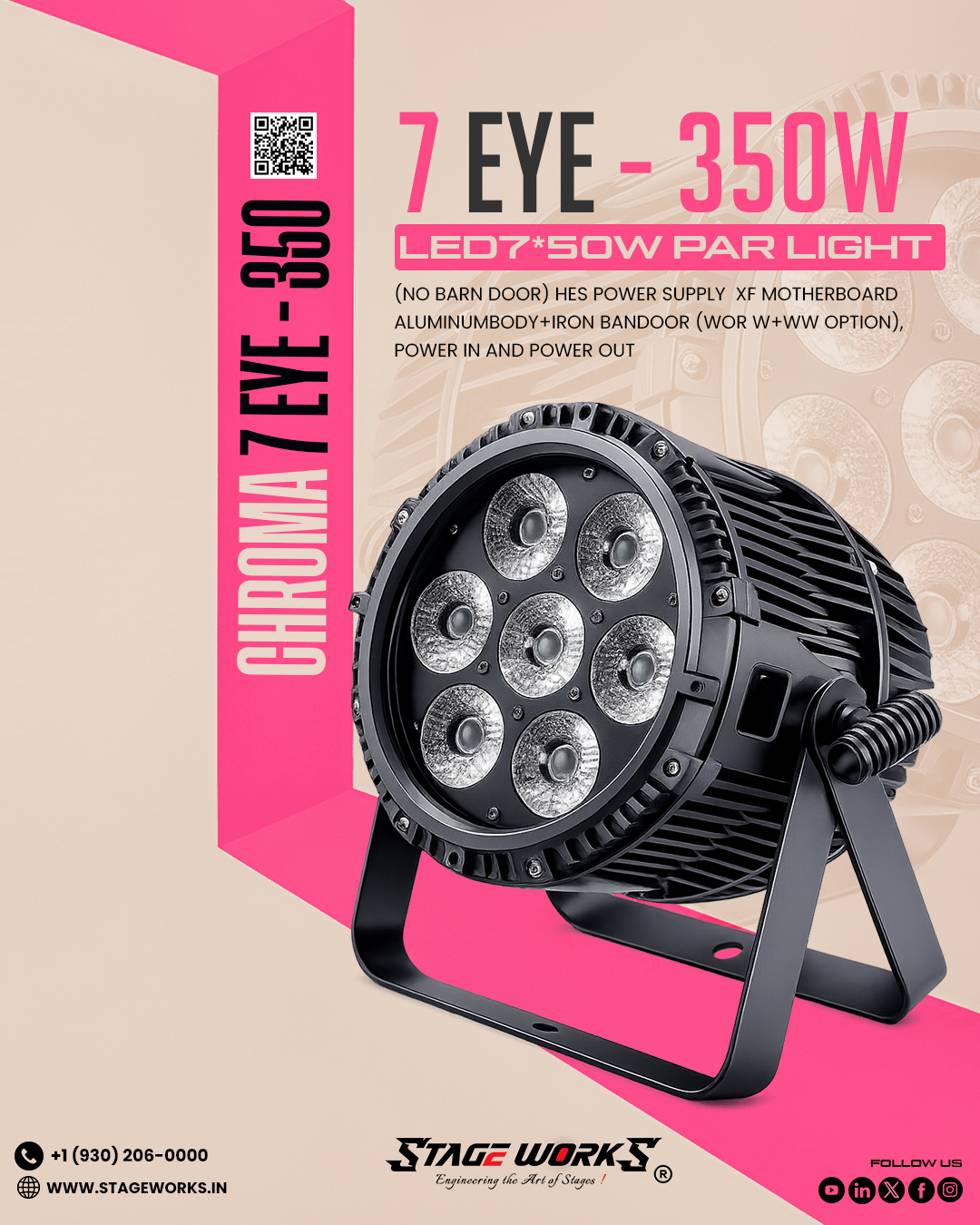

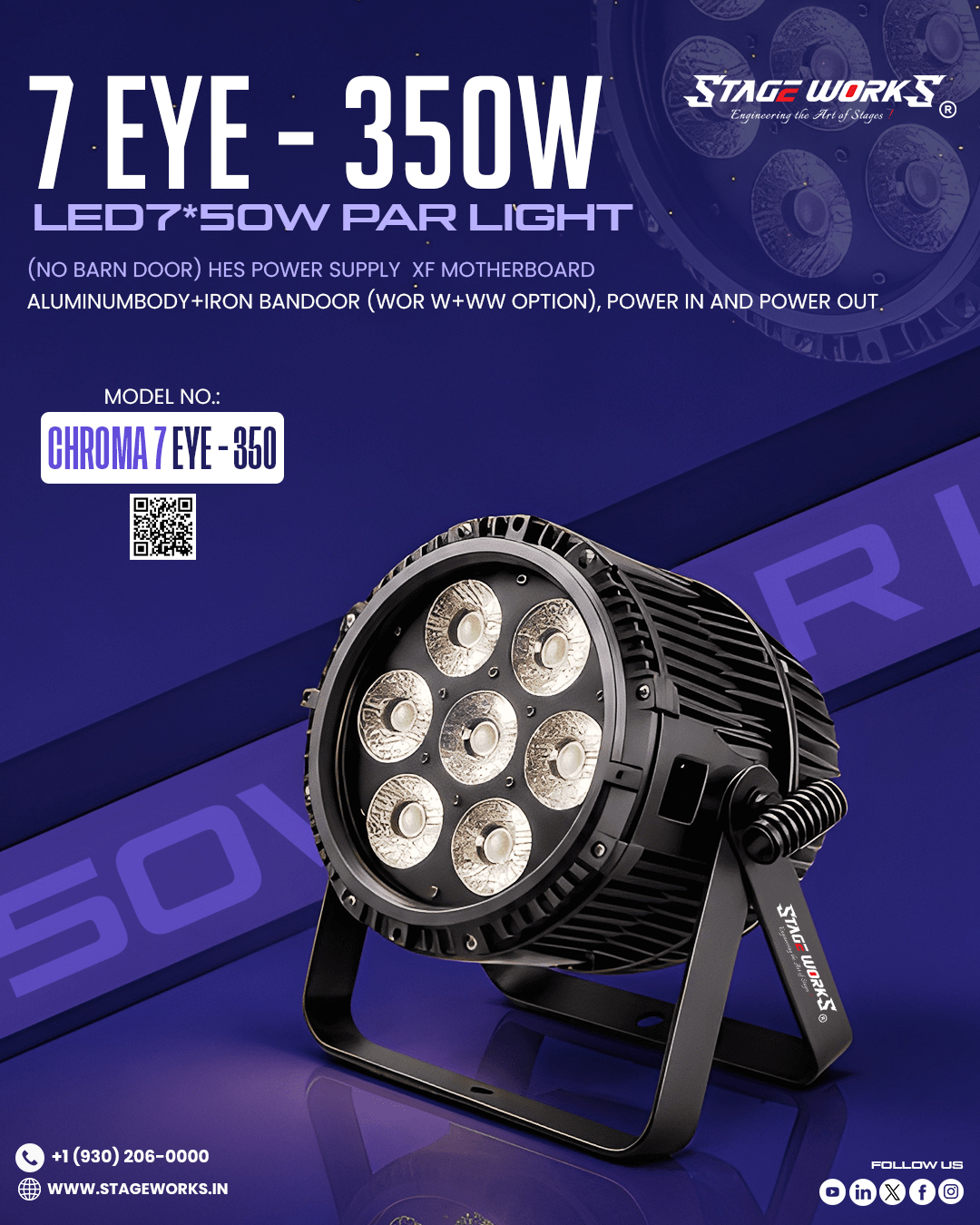

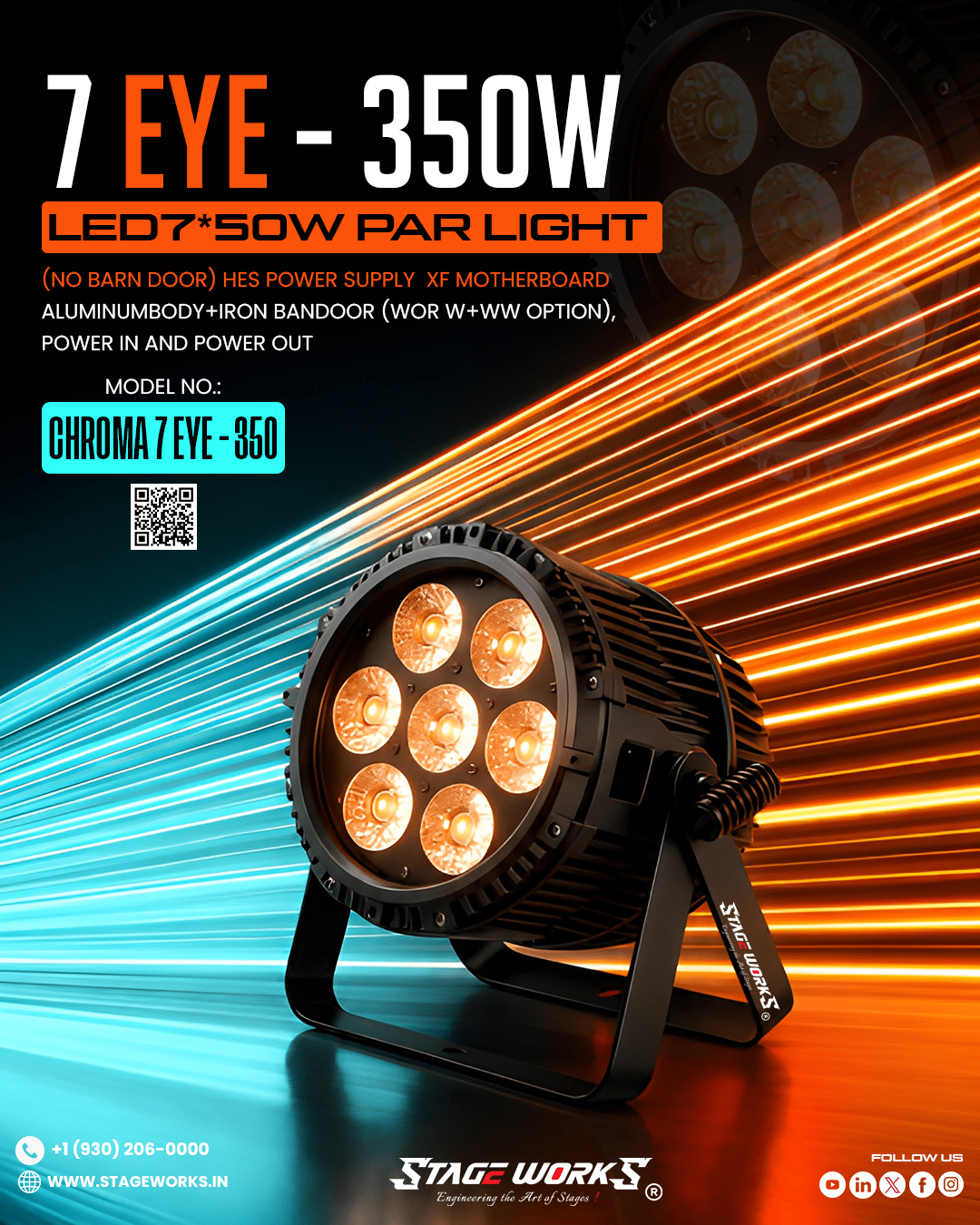

AI CHROMA 7 EYE - 350 7-Cell High-Power Stage Blinder PAR
High-intensity 350W 7-cell COB LED blinder fixture (7x 50W LEDs) with dual-temperature 3200K/5600K blending, high CRI 95%, and robust stage-grade chassis.
Key Highlights
Light Source7 x 50W High-Power COB LEDs (350W Total)
Rated Power Consumption350W
Input VoltageAC 110V-240V, 50/60Hz
Beam Angle60° Dispersive Beam Angle
Color Temperature3200K (Warm) + 5600K (Daylight) Variable
Color Rendering Index (CRI)Ra ≥ 95%
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 7 x 50W High-Power COB LEDs (350W Total) |
| Rated Power Consumption | 350W |
| Input Voltage | AC 110V-240V, 50/60Hz |
| Beam Angle | 60° Dispersive Beam Angle |
| Color Temperature | 3200K (Warm) + 5600K (Daylight) Variable |
| Color Rendering Index (CRI) | Ra ≥ 95% |
| Dimming Curve | 0–100% Linear Dimming |
| Control Modes | DMX512 (3CH / 5CH), Master/Slave, Manual |
| Control Interface | Digital LED Display with 4 Navigation Buttons |
| Protection Rating | IP20 |
| Dimensions (L x W x H) | 220 x 210 x 210 mm |
| Net Weight | 4.5 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
