Profile SpotlightSKU: AI-BLAZE-PC300EZIn Production

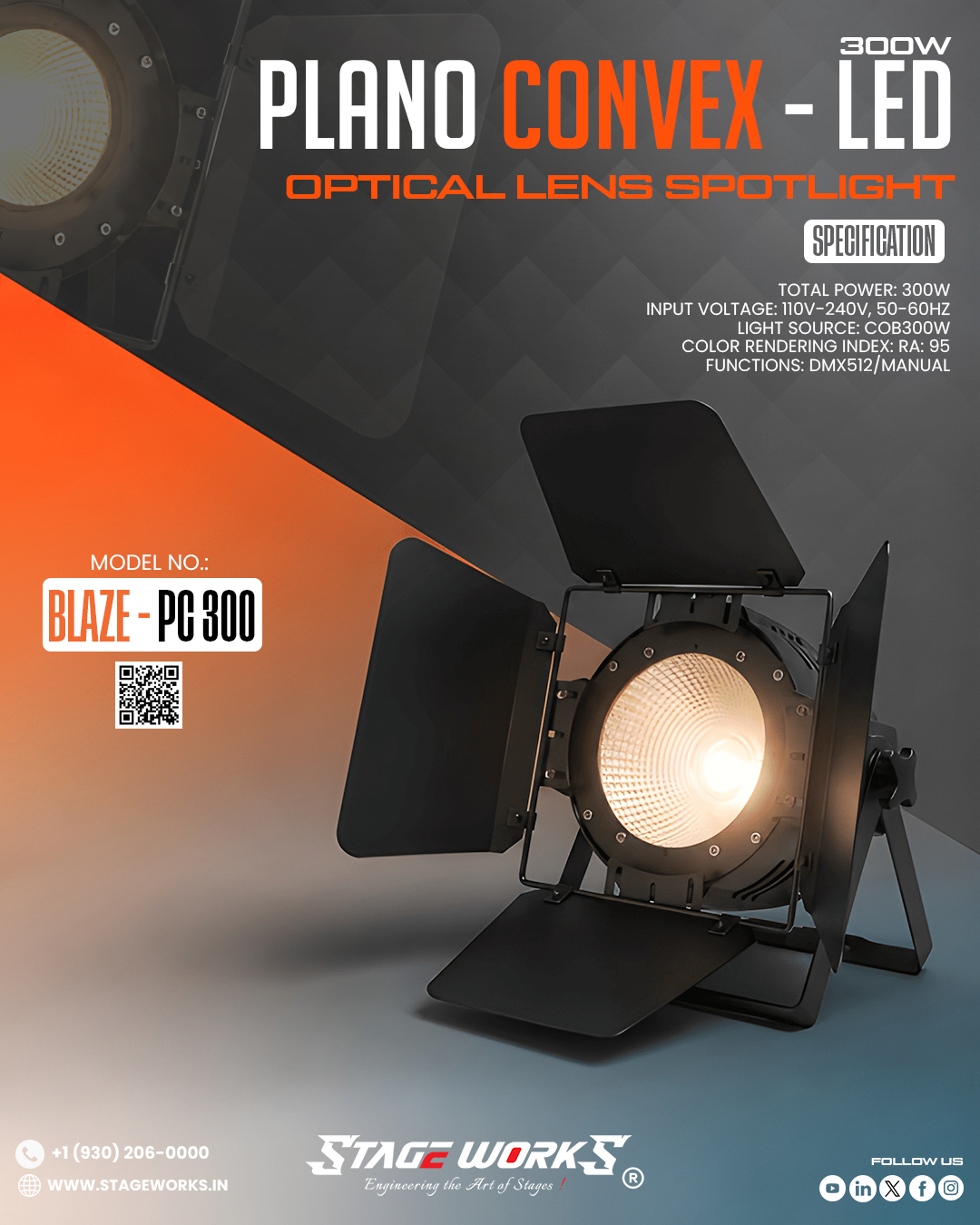

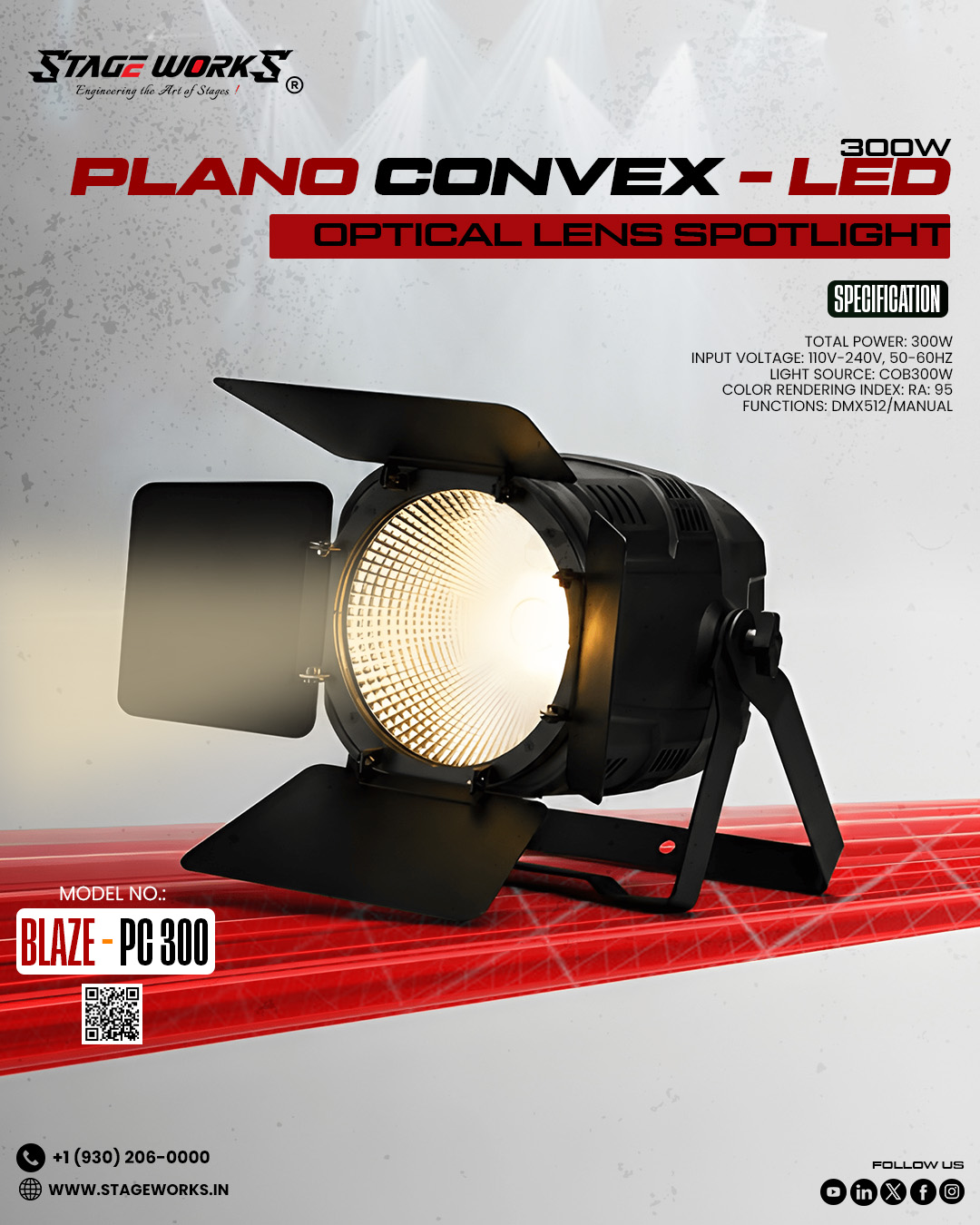

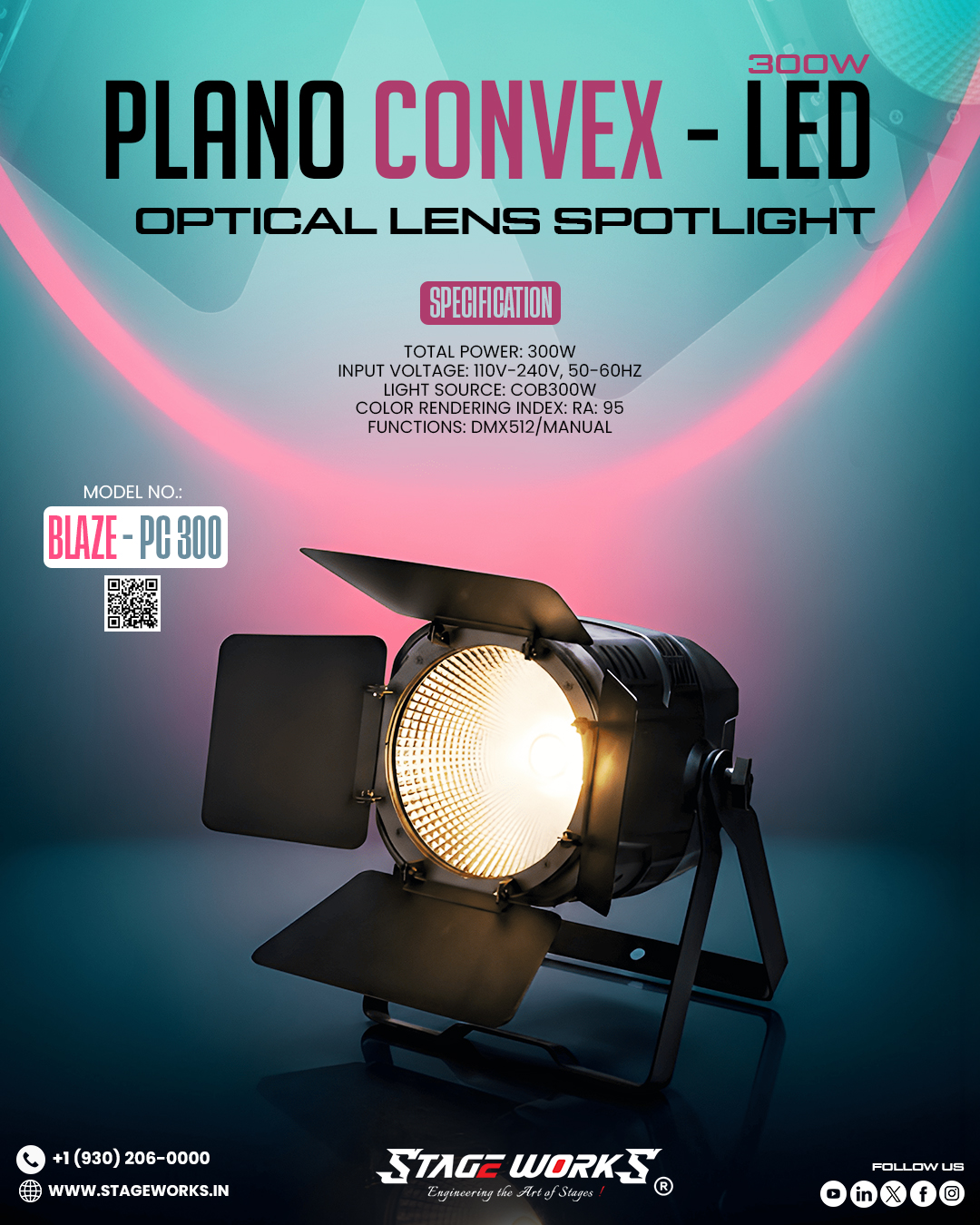

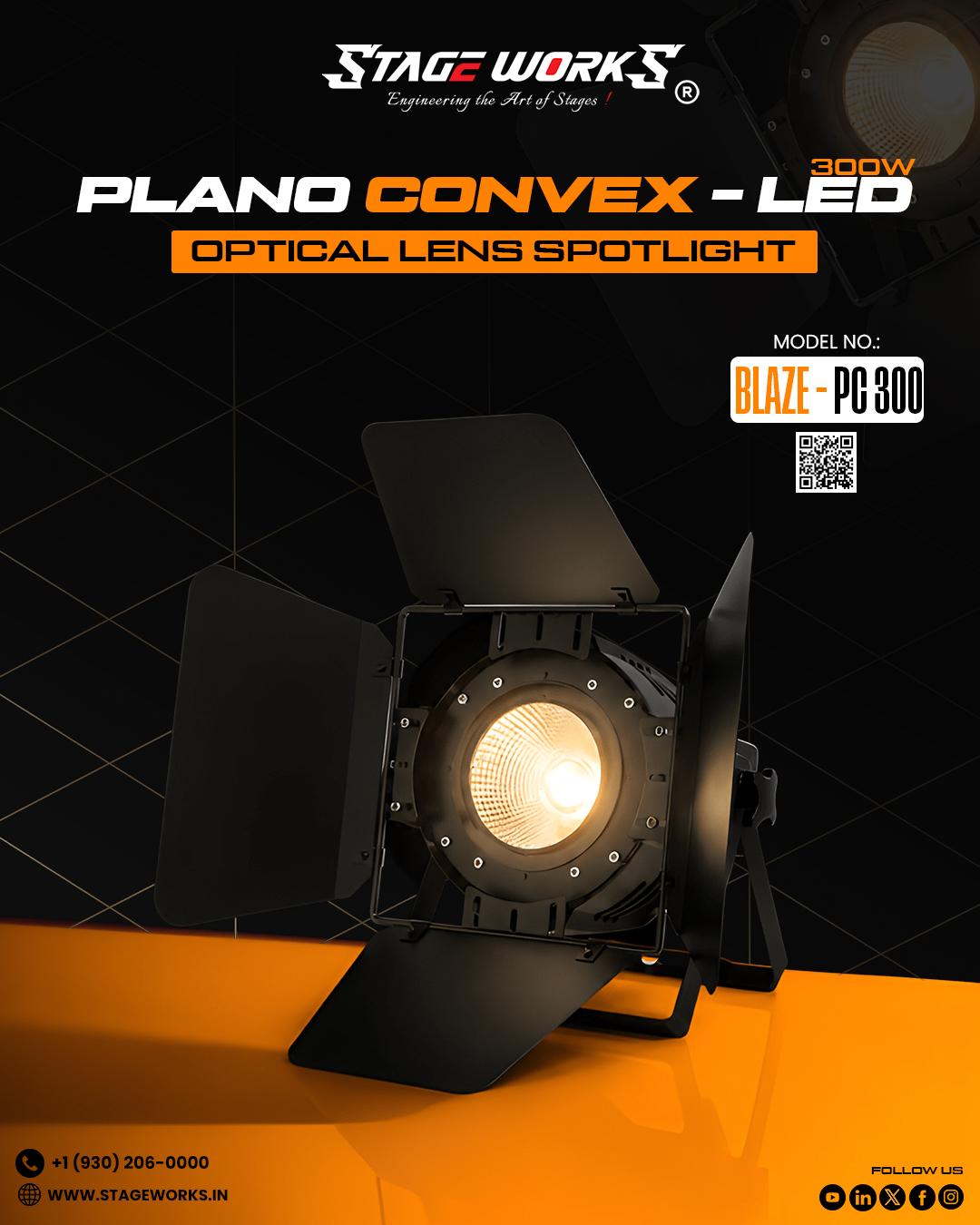

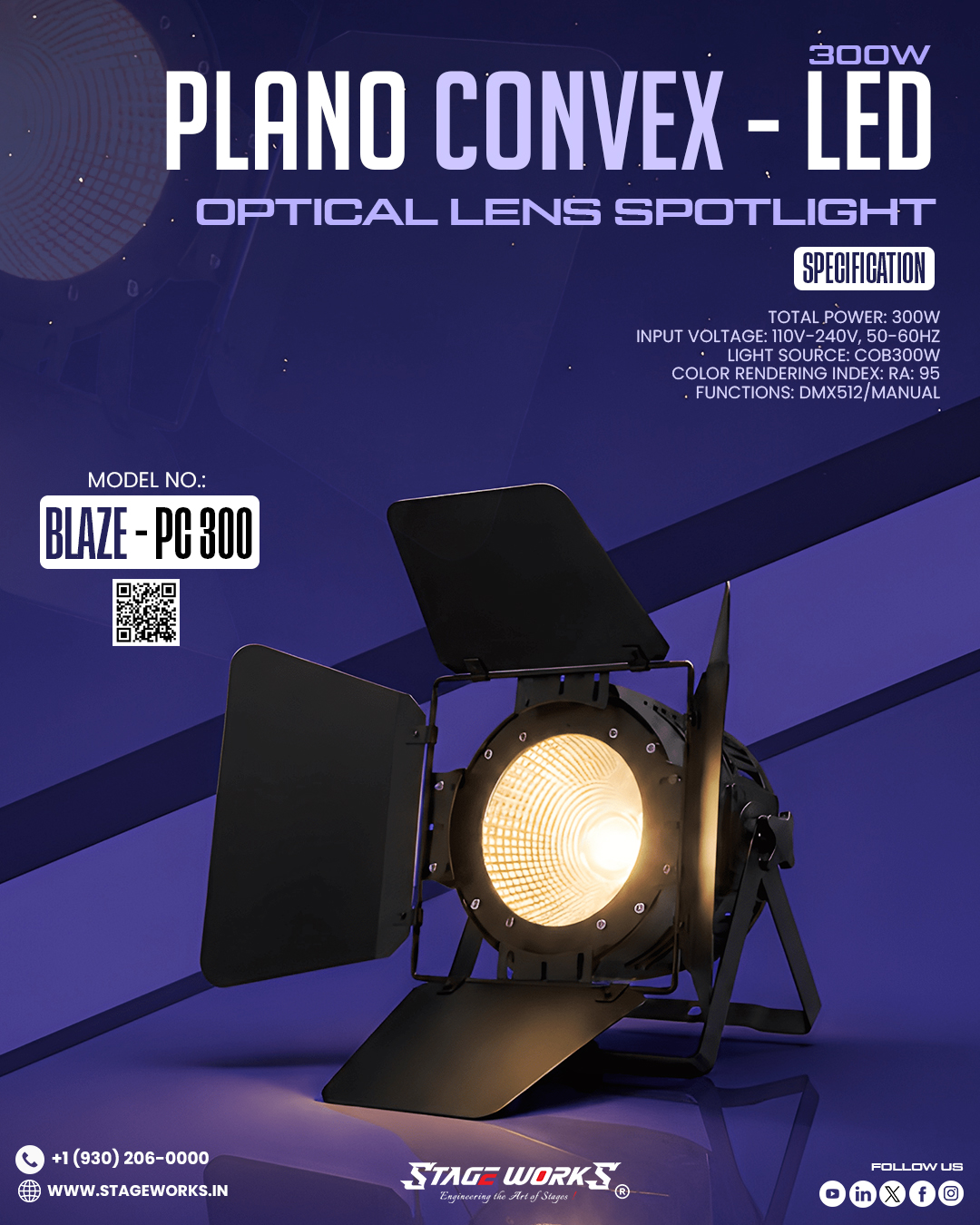

AI BLAZE - PC 300/EZ Motorized Electric Zoom Plano-Convex Spot
300W COB LED Plano-Convex (PC) spotlight with motorized electric zoom (15°–50°), dual color temperature (3200K/5600K), and high color fidelity CRI Ra ≥ 95.
Key Highlights
Light Source300W High-CRI COB LED Module
Rated Power300W
Input VoltageAC 110V-240V, 50/60Hz
Lens TypeOptical Plano-Convex (PC) Glass Lens
Motorized Zoom Angle15° to 50° Electric Motorized Zoom
Color Temperature3200K / 5600K Dual Temperature
📞
Chat on WhatsApp›Factory Helpline+91 90150 60000
COMMERCIAL PROCUREMENT
Factory DirectRequest Official Quotation
ENGINEERING DATASHEET
Technical Specifications & Parameters
Full electrical, optical, thermal, and photometric characteristics for lighting designers, venue consultants, and electrical contractors.
| Parameter / Specification | Technical Value / Rating |
|---|---|
| Light Source | 300W High-CRI COB LED Module |
| Rated Power | 300W |
| Input Voltage | AC 110V-240V, 50/60Hz |
| Lens Type | Optical Plano-Convex (PC) Glass Lens |
| Motorized Zoom Angle | 15° to 50° Electric Motorized Zoom |
| Color Temperature | 3200K / 5600K Dual Temperature |
| Color Rendering Index (CRI) | Ra ≥ 95 |
| Control Modes | DMX512 & Onboard Manual Control Panel |
| DMX Channels | Monochrome 3CH / Dual-Temperature 5CH |
| Dimming | 0–100% 16-Bit Smooth Linear Dimming |
| Display Panel | Digital LCD Display with 4-Button Navigation |
| Included Accessories | Rotating 4-Leaf Barndoor, Gel Frame, Safety Cable |
| Housing & Protection | Extruded Aluminum Alloy, IP20 |
| Dimensions (L x W x H) | 390 x 180 x 220 mm |
| Net Weight | 7.0 kg |
CE & RoHS Certified
Complies with international electrical safety, harmonic suppression, and environmental standards.
Universal DMX512-A
Standard 3-pin / 5-pin XLR connectors, Art-Net/sACN compatible, with optoisolated data inputs.
Rigging & Flightcase
Supplied with safety wire loops, Omega quick-lock clamps, and touring-grade dual road cases on request.
Pan-India Support
Spare parts stock (ballasts, LED chips, power supplies, stepper motors) maintained across 20+ hubs.
